Fixing Specification – Unexposed Areas

All inland regions other than certain specific areas.

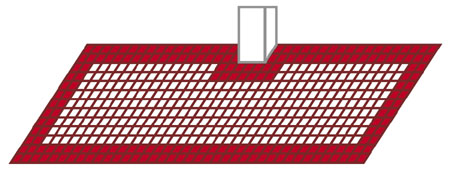

Mechanically fix two courses of tiles or full overhang at eaves, verges and ridges and a full tile adjacent to valleys, hips and abutments. Cut tiles should be secured by nailing, wiring or adhesive. Closed soffits is recommended on all verge and eave overhangs.

Roof Pitches
17° to < 26° - underlay mandatory
26° to < 45° - underlay recommended
45° to < 55° - underlay recommended, each tile to be nailed
55° to vertical - underlay recommended, each tile to be nailed and clipped

Tiling and fixing to comply with SANS 10062:2003
