TOP HUNG SLIDING HARDWARE FOR WARDROBE AND CUPBOARD DOORS.


DOUBLE 60 is the sliding door hardware for lightweight wardrobe and cupboard doors in homes.

SPECIFICATIONS

Max. door mass: 30kg.
Max. door height:   2000mm
Max door width: 900mm
Door thickness: 16 - 32mm
Standard packed sets:
Size 4D: 2 doors in 1200mm opening
Size 5D: 2 doors in 1500mm opening
Size 6D: 2 doors in 1800mm opening
Size 8D: 3 doors in 2400mm opening

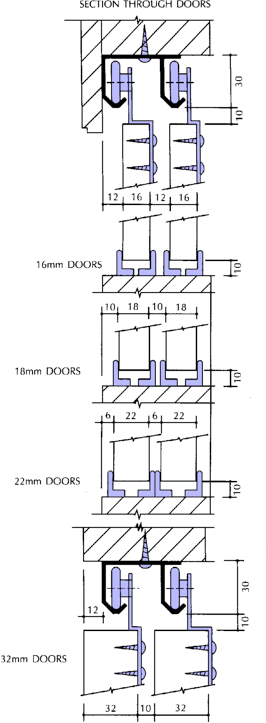

NOTE:
Deep front hanger and
shallow rear hanger
for doors up to 22mm thick.

For 32mm thick doors
the hangers are reversed.




PLAN OF GUIDES AT DOOR OVERLAP (INSTALL WHEN DOORS ARE PLUMB AND LEVEL)




Hillaldam Coburn Systems, P.O. Box 4664, Johannesburg 2000, South Africa
Tel: (011) 493-6515   Fax: (011) 493-1463   email: sales@hillaldam.co.za
