| JASON is the sliding door hardware for cabinet and light cupboard
doors. A choice of side fixing or morticed rollers is offered, depending on door
thickness. |
| |
SPECIFICATIONS
|
| Max. door mass: |
20kg |
| Max. door height: |
1000mm |
| Max door width: |
1000mm |
| Door thickness: |
16 - 20mm |
|
Standard packed sets (with side fixing rollers):

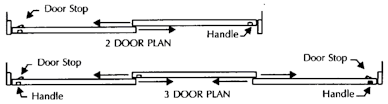

Size 4J: for 2 doors in a 1200mm opening
Size6J: for 2 doors in a 1800mm opening
|
JASON COMPONENTS
| Top channel |
- 76A aluminium |
| Top guides |
- 74 nylon, edge fixed |

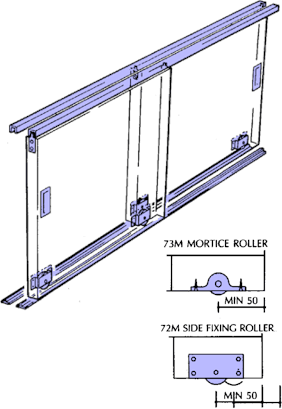

| Bottom rollers |
- 73M mortice ball-bearing roller |
|
- 72M side fixed ball-bearing roller |
| Bottom track |
- 77A aluminium |
|
|
 |
|
|
 |
|
 |
|

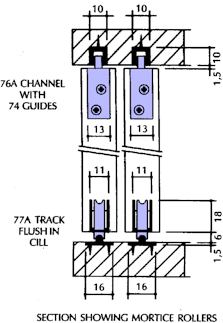

NOTE:
BOTTOM TRACK OFFSET TO TOP
CHANNEL DEPENDING ON
THICKNESS OF DOOR |
|
