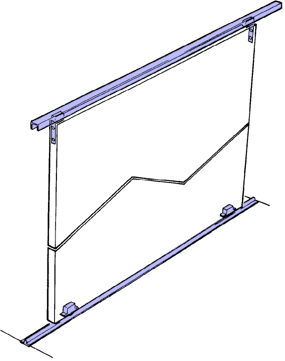

BOTTOM ROLLING SLIDING DOOR HARDWARE FOR 55KG TIMBER DOORS AND CUPBOARDS


SPECIFICATIONS

Max. door mass: 55kg
Max. door height:   2100mm
Door thickness: 30 - 45mm

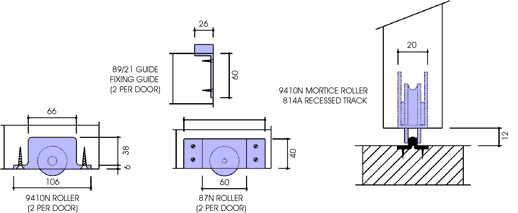

COMPONENTS

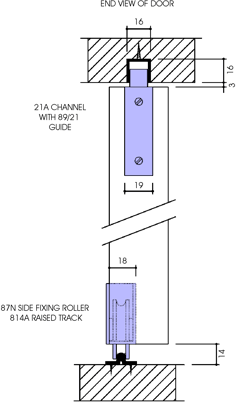

21A Aluminium channel.
89/21 Top guide.
87N Side fixing roller.
9410N Mortice roller.
814A  Aluminium track.
