TOP HUNG SLIDING DOOR HARDWARE FOR 100KG STEEL FRAMED DOORS AND GATES.


STRAIGHTAWAY 100S is the top hung sliding door hardware for lightweight grilles and sliding gates, up to 100kg.

SPECIFICATIONS

Max. door mass: 100kg.
Max. door height: 2500mm.
Door thickness: 25 - 50mm.

COMPONENTS

A100 bracket (optional) - galvanised.

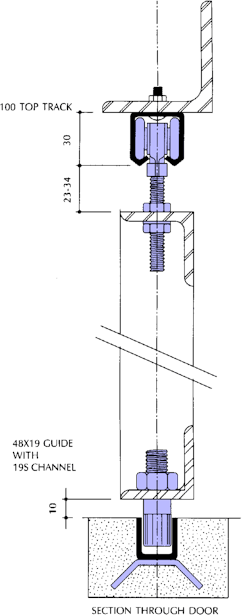

100 track - galvanised/primed steel.

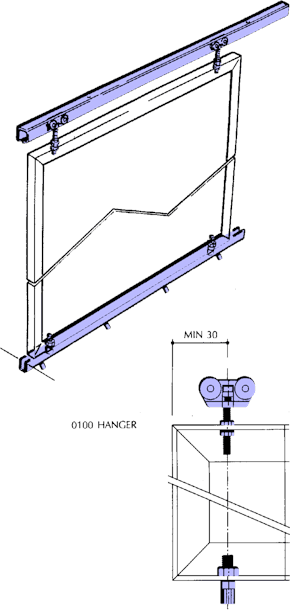

0100 hanger - galvanised with ball-bearing nylon wheels.
48/19B guide - galvanised with brass roller.
19S channel - steel (lugged optional).






Hillaldam Coburn Systems, P.O. Box 4664, Johannesburg 2000, South Africa
Tel: (011) 493-6515   Fax: (011) 493-1463   email: sales@hillaldam.co.za
