Construction Details - 300C

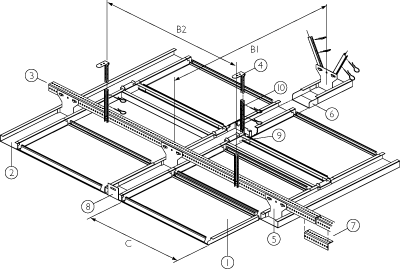

System overview



1 - 300C panel
2 - C-grid profile
3 - Primary angle profile
4 - Nonius hanger
5 - Suspension shoe
6 - C-grid splice
7 - Primary angle profile splice
8 - Wall bracket
9 - C-grid cross connector
10 - C-grid nonius adaptor




Characteristics

  • Closed ceiling type in 300mm module, resulting in a closed smooth appearance laid in an unidirectional or tartan-type exposed wide grid




  • Panels are available as standard in steel (0.6mm) or aluminium (0.7mm)




  • Simple and cost-effective solution for office environments where partitioning can be fixed against the c-grids without damaging the panels
  • Panels can be supplied in any free spanning length up to 2400 mm
  • Optimal acoustic control by using perforated panels with a non-woven textile membrane bonded to the inside face
  • Easy demountable panels, which allows full access to services and equipment in plenum
  • Panels are lightweight yet strong, made from aluminium or steel which are both fully recyclable
  • Absence of dust retention and ease of cleaning make these panels ideal for any application where hygiene is important
  • Base Material: LuxalonŽ 300C panels are rollformed from 0.7 mm thick pre-painted stove enamelled aluminium strip or from 0.6 mm thick stove enamelled galvanised steel strip.
  • Coating: the tough and durable 2-layer polyester finish in a nominal thickness of 20 microns, is stove enamelled in a continuous coil-coating process ensuring uniform coating thickness and absolute adhesion.
  • Tolerances: as a member of the Technical Association of Industrial Metal Ceiling Manufacturers (TAIM-eV), Hunter Douglas complies with tolerance criteria as specified in chapter 4 of the TAIM Technical Manual on Metal Ceilings (THM) and the accompanying Quality Standards.



Fire behaviour

Suspended LuxalonŽ metal ceilings have a very limited contribution to a possible fire. They are classified according to EN 13501-1, class A2,s1,d0 for plain panels and perforated panels or class A2,s2,d0 for perforated panels with non-woven acoustic material. Further information is available on request.

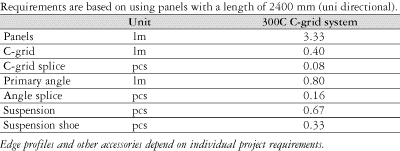

Material per sqm

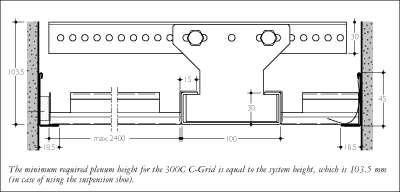

Construction details




Edge profiles

Edge profiles available in the Wide Panel program.
