model
KCB101
KCB101 CURVED BACK URINAL:
Features:
• for use with flush valve or high level cistern
• concealed sparge pipe
• grade 304 (18/10) stainless steel 1,2mm gauge
• fully sound deadened
Size:
• 915mm long
• 1065mm long
• 1220mm long
• 1370mm long
• 1525mm long
• 1675mm long
• 1830mm longKCB102
KCB102 CURVED BACK URINAL
Features:
• built in automatic flush tank
• 12mm adjustable drip cock for water supply
• grade 304 (18/10) stainless steel
• fully sound deadened
Size:
• 915mm long
• 1065mm long
• 1220mm long
• 1370mm long
• 1525mm long
• 1675mm long

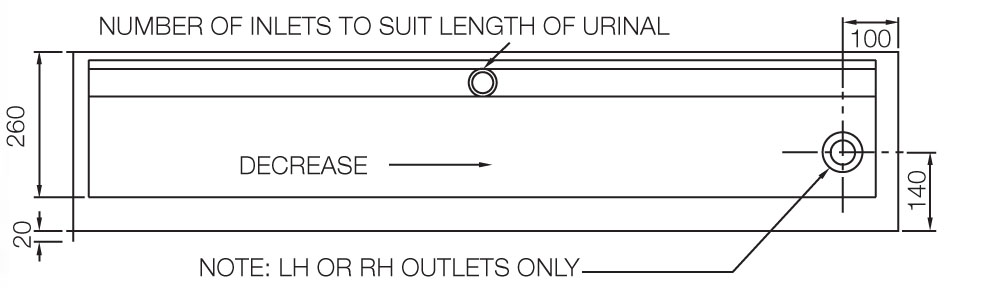

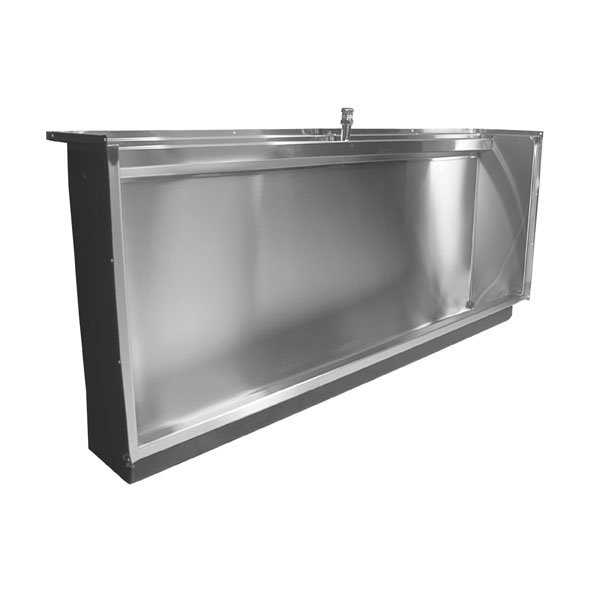

• 1830mm longKTU
KTU TROUGH URINAL:
Features:
• concealed sparge pipe
• supplied with 28mm CP Conex coupling for connection to flush pipe or junior flush valve
• grade 304 (18/8) stainless steel 0,9mm gauge
• centre, left or right outlet
• sloped drip ledge
• available with free standing end/s or tiling key for application between walls
Size:
• 915mm long
• 1065mm long
• 1220mm long
• 1370mm long
• 1525mm long
• 1675mm long
• 1830mm longSUR-BOWL-TE

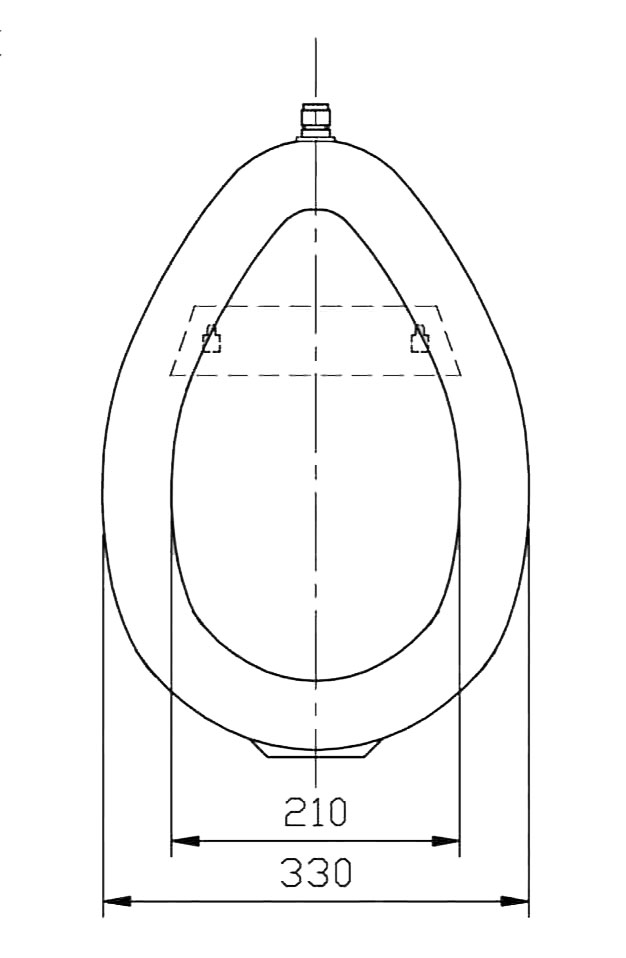

SUR-BOWL-TE BOWL URINAL:
Features:
• grade 304 (18/10) stainless steel
• durable
• hygienic
• wall mounted
Size:

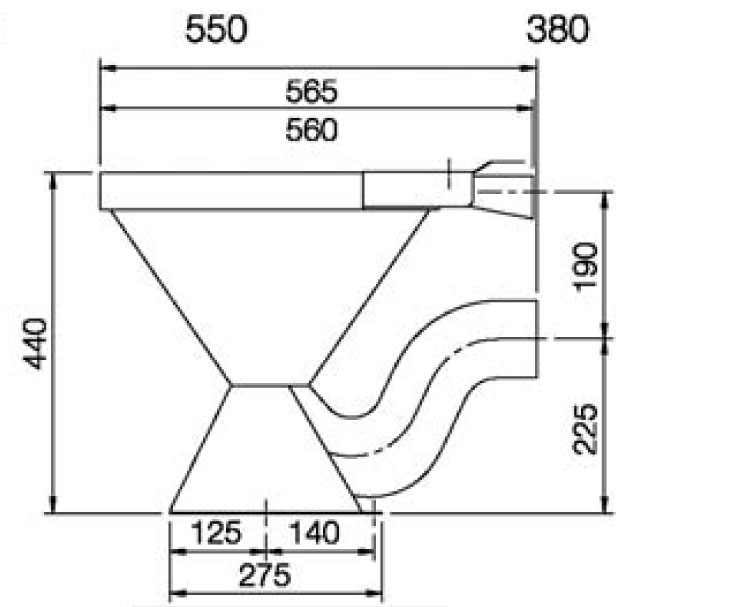

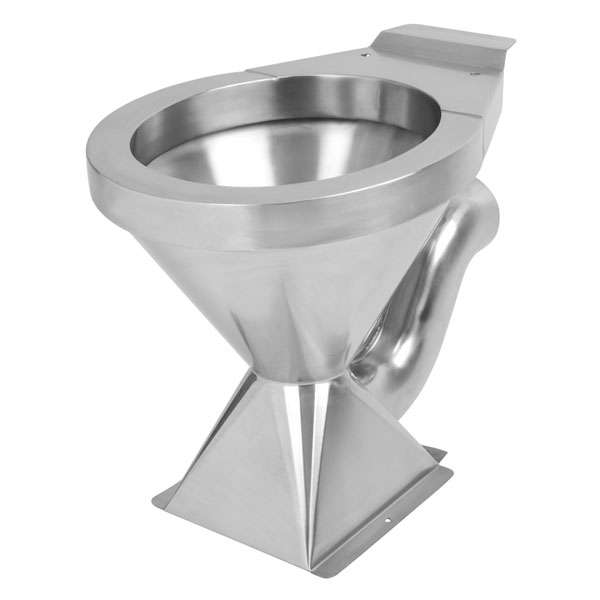

• 330 x 415mm highSWC-PAN-FM
SWC-PAN-FM FLOOR MOUNTED WC PAN:
Features:
• grade 304 (18/10) stainless steel
• durable
• hygienic
• complies with paper removal test: SABS 497:2006
• complies with flushing test: SABS 1733:2007
• inlet to suit standard flush pipe connections
• outlet to suit standard PVC or cast iron sewerage systems
Size:

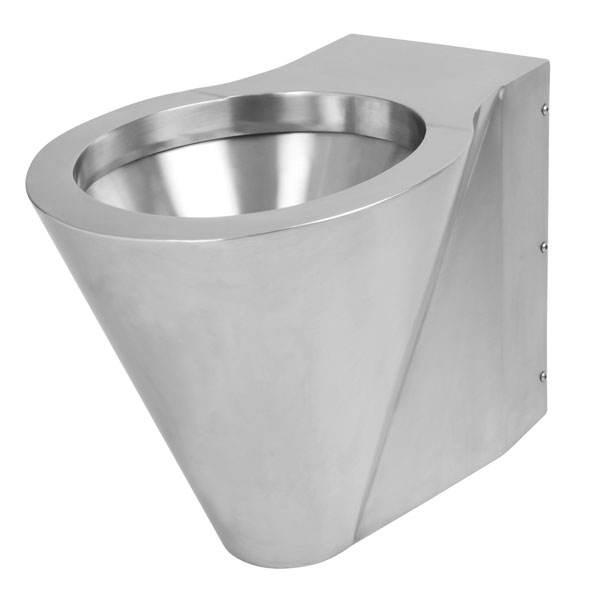

• 380 x 565 x 440mm highSWC-PAN-WM

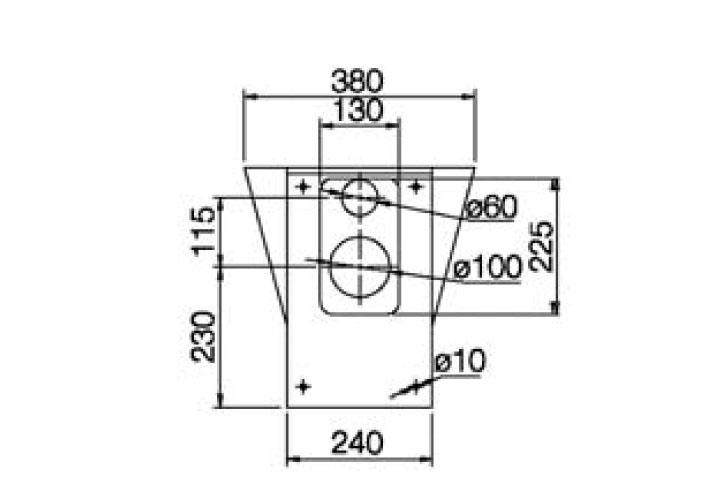

SWC -PAN-WM WALL HUNG WC PAN:
Features:
• grade 304 (18/10) stainless steel
• durable
• hygienic
• outer body totally enclosed
• complies with paper removal test: SABS 497:2006
• complies with flushing removl test: SABS 1733:2007
• 1,2mm gauge external surface and 3mm guage mounting panel
• integral "P" trap and WC shroud
• all plumbing built into wall
• inlet and outlet to suit standard flush pipe sewerage systems
• seat provision
• fixed to wall with 12mm anchor bolts (supplied by installer)
Size:

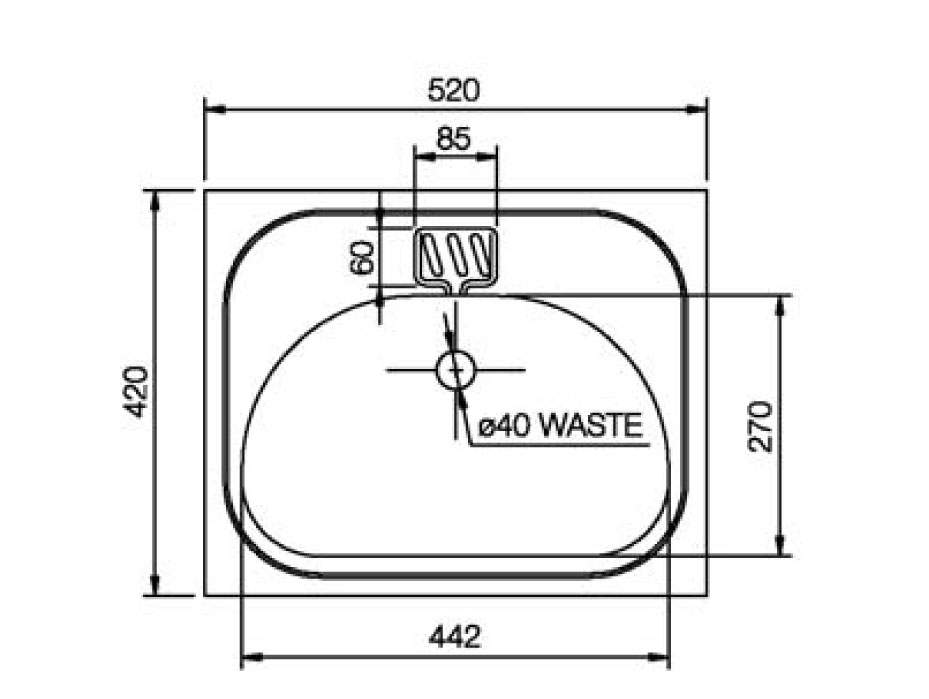

• 380 x 576 x 396mm highSHB-001

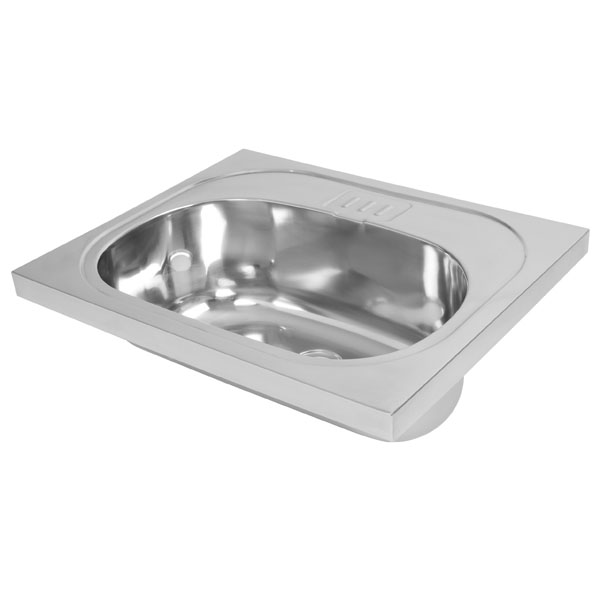

SHB-001 WASH HAND BASIN:
Features:
• grade 304 (18/10) stainless steel
• one piece pressed bowl
• with or without tiling key
• durable
• hygienic
Size:
• 520 x 420mmSRHB-002
SRHB-002 WASH HAND BASIN:
Features:
• grade 304 (18/10) stainless steel
• one piece pressed bowls
• with or without tiling key
• durable
• hygienic
Size:

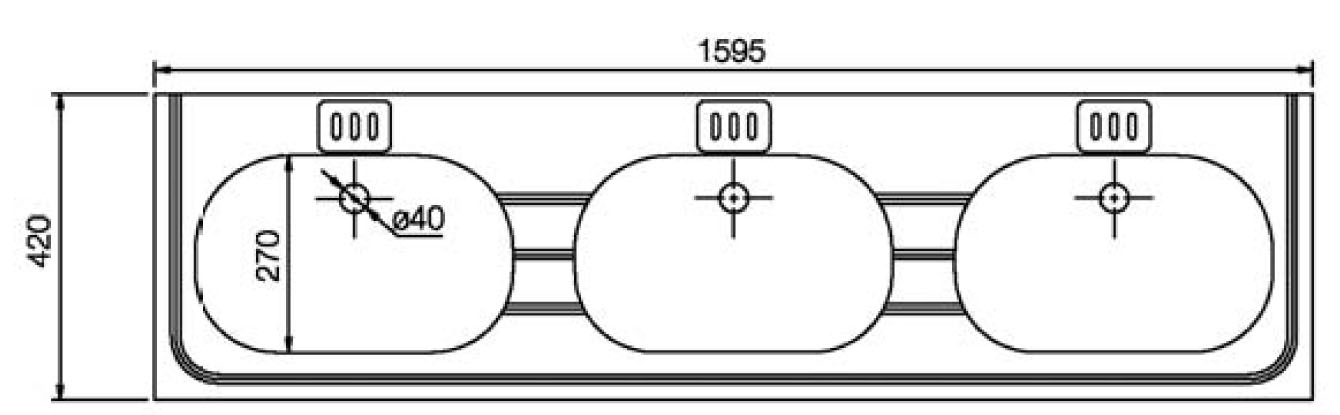

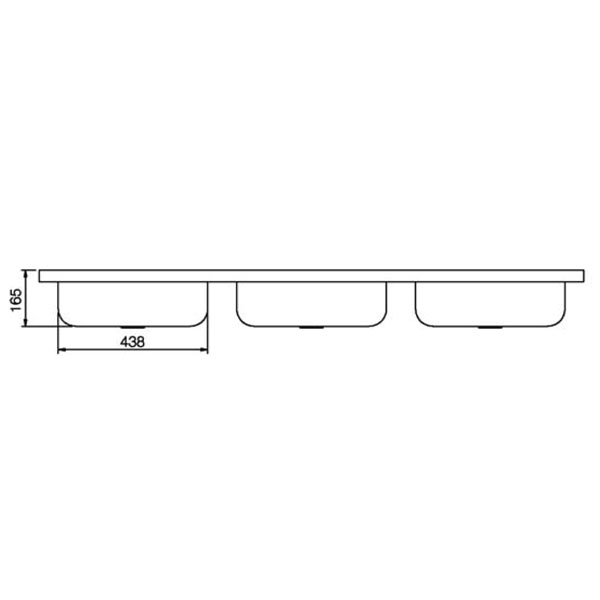

• 1070 x 420mmSRHB-003
SRHB-003 WASH HAND BASIN:
Features:
• grade 304 (18/10) stainless steel
• one piece pressed bowls
• with or without tiling key
• durable
• hygienic
Size:
• 1595 x 420mmKCB101915
