sheet profile
- Classicorr® Corrugated profile
  CLASSICORR® CORRUGATED PROFILE :
  • Classical Sinusoidal profile.
  • Cover width = 762mm.
  • Can be factory cranked to a curve and bullnosed to a wide range of radii.
- Tufdek® profile
  TUFDEK® IBR PROFILE :
  • Angular trapezoidal fluted profile sheet.
  • IBR = Inverted Box Rib.
  • Cover width = 686mm.
  • Can be factory cranked to a curve and bullnosed to a wide range of radii.
- Fluteline® profile
  • Trapezoidal profile sheet with excellent water-shedding capabilities.
  • Cover width = 889mm.
  • Can be factory cranked to a curve and bullnosed to a wide range of radii.
- Widedek® profile
  • Similar in appearance to IBR profiled sheeting but with approximately 10% more cover width.
  • Cover width = 760mm.
  • Can be factory cranked to a curve and bullnosed to a wide range of radii.

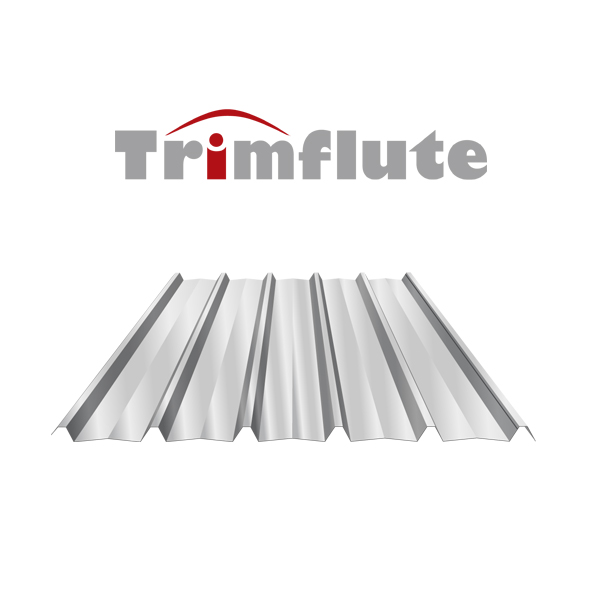

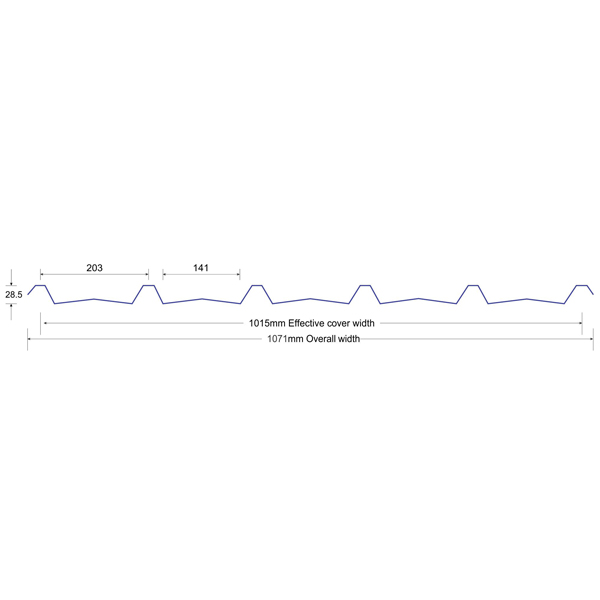

- Trimflute® profile
  • Trimflute® is a subtle square fluted profile. The long flute gives the profile its strength with long spanning capabilities.
  • Cover width = 1015mm
  • Can be factory cranked to a curve and bullnosed to a wide range of radii.
accessory
- apex flashing
  Size: 231 x 231mm
  Angle: As required
  Girth: 462mm
- barge flashing
  Size:
  • Tufdek® = 231 x 231mm
  • Widedek® = 231 x 231mm
  • Fluteline 7® = 231 x 231mm
  • Trimflute® = 231 x 231mm
  • Classicorr® = 231 x 231mm
  Angle: 90°
  Girth: 462mm
- broadflute closure
  Length:
  • Tufdek® = 700mm
  • Widedek® = 775mm
  • Trimflute® = 1020mm
  • Fluteline 7® =900mm
- counter flashing
  Size: SB 12 x 30 x 112mm
  Angle: 88°
  Girth: 154mm
- drip flashing
  Size:
  • Tufdek® = 60 x 50 x 20 x 24mm
  • Widedek® = 60 x 50 x 20 x 24mm
  • Fluteline 7® = 60 x 50 x 20 x 24mm
  • Trimflute® =60 x 50 x 20 x 24mm
  • Classicorr® = 60 x 50 x 20 x 24mm
  Angle: 92°
  Girth:
  • Tufdek® = 154mm
  • Widedek® = 154mm
  • Fluteline 7® = 154mm
  • Trimflute® = 154mm
  • Classicorr® = 154mm
- external corner
  Size: 231 x 231mm
  Angle: 90°
  Girth: 462mm
- headwall flashing
  Size: 77 x 231mm
  Angle: As required
  Girth: 308mm
- hip cap
  Size: 231 x 231mm
  Angle: As required
  Girth: 462mm
- internal corner
  Size: 231 x 231mm
  Angle: 90°
  Girth: 462mm
- ridge flashing
  Size: 231 x 231mm
  Angle: As required
  Girth: 462mm
- side wall flashing
  Size:
  • Tufdek® = 77 x 231mm
  • Widedek® = 77 x 231mm
  • Fluteline 7® = 63 x 245mm
  • Trimflute® = 77 x 231mm
  • Classicorr® = 77 x 231mm
  Angle: 90°
  Girth:
  • Tufdek® = 308mm
  • Widedek® = 308mm
  • Fluteline 7® = 308mm
  • Trimflute® = 308mm
  • Classicorr® = 308mm
- under-over flashing
  Size: 231 x 231mm
  Angle: As required
  Girth: 462mm
- valley flashing
  Size: 231 x 231mm
  Angle: As required
  Girth: 462mm
sheet material
- ZINCAL®
  ZINCAL® is a classic unpainted AZ coated steel.
  • Considerable increase in service life (due to 4 times greater corrosion resistance)
  • Superior thermal protection
  • Lasting aesthetic value
  - Safal Steel Material Warranty
- COLORPLUS®
  Colorplus® is a factory pre-painted product, with colour applied over Zincal® substrate, offering all the advantages of Zincal® with the option of colour for added aesthestic appeal. The Colorplus® paint system has been carefully selected to endure the harsh African climate, to limit chalking and ensure optimal colour integrity. It also helps to resist dirt or contaminant retention, so that the surface stays clean and the colour is fresh looking for many years.
  - Safal Steel Material Warranty
COLORPLUS® sheet colour
- Chalk (COLORPLUS®)
- Deep Ocean (COLORPLUS®)
- Desert Sand (COLORPLUS®)
- Rain Cloud (COLORPLUS®)
- Rain Forest (COLORPLUS®)
- Rustic Bark (COLORPLUS®)
- Savannah (COLORPLUS®)
- Seaspray (COLORPLUS®)
- Slate (COLORPLUS®)
- Sunset Red (COLORPLUS®)
- Thunderstorm (COLORPLUS®)
- Rain Cloud (COLORPLUS® Matt)
- Seaspray (COLORPLUS® Matt)
- Thunderstorm (COLORPLUS® Matt)
- Rain Cloud (COLORPLUS® Textured)
- Rustic Bark (COLORPLUS® Textured)
- Thunderstorm (COLORPLUS® Textured)
- (colour to be confirmed on finalisation)
