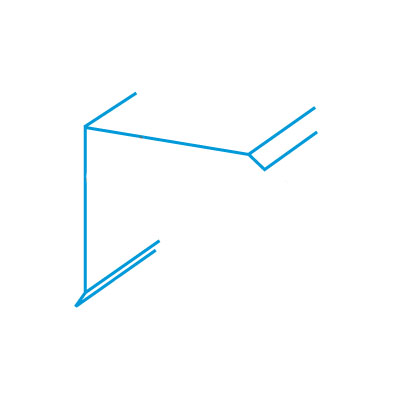

apex flashing

Size: 330 x 330mm
Angle: As required
Girth: 660mm

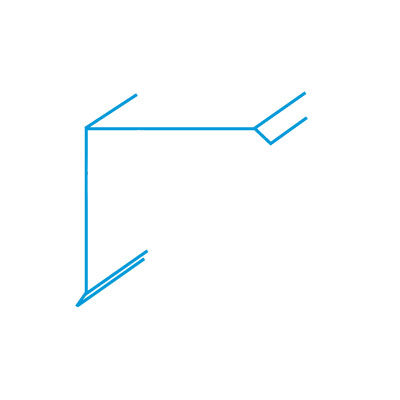

barge flashing

Size:
• Saflok 410 = 330 x 292 x 38mm
• Saflok 700 = 330 x 292 x 38mm
• Newlok = 330 x 282 x 48mm
Angle: 90°
Girth: 660mm

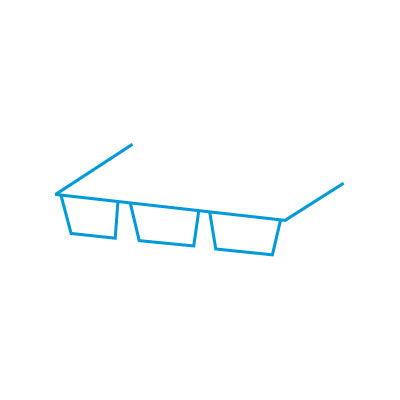

broadflute closure

Length:
• Saflok 410 = 2 x 410mm
• Saflok 700 = 705mm
• Newlok = 466mm

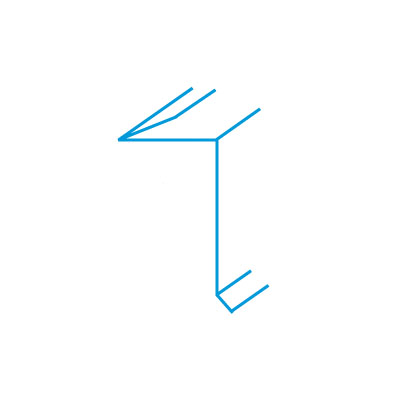

counter flashing

Size: 13 x 30 x 142mm
Angle: 88°
Girth: 185mm

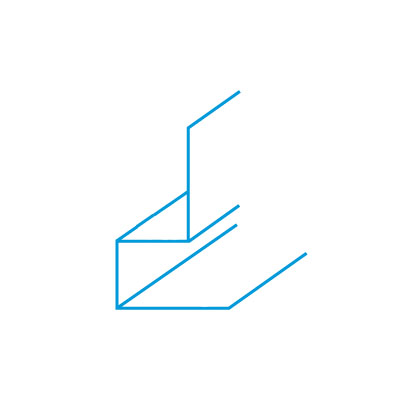

drip flashing

Size: 111 x 60 x 25 x 35mm
Angle: 92°
Girth: 231mm

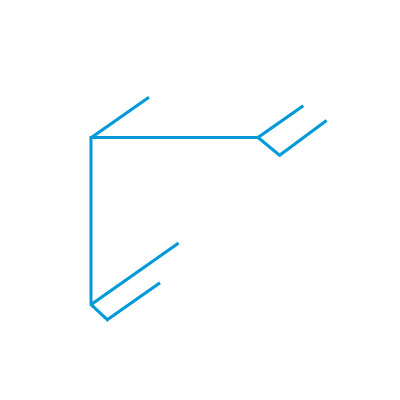

external corner

Size:
• Saflok 410 = 292 x 292 x 38 x 38mm
• Saflok 700 = 292 x 292 x 38 x 38mm
• Newlok = 282 x 282 x 48 x 48mm
Angle: 90°
Girth: 660mm

hip cap

Size: 330 x 330mm
Angle: As required
Girth: 660mm

headwall flashing

Size: 94 x 368mm
Angle: As required
Girth: 462mm

internal corner

Size:
• Saflok 410 = 292 x 292 x 38 x 38mm
• Saflok 700 = 292 x 292 x 38 x 38mm
• Newlok = 282 x 282 x 48 x 48mm
Angle: 90°
Girth: 660mm

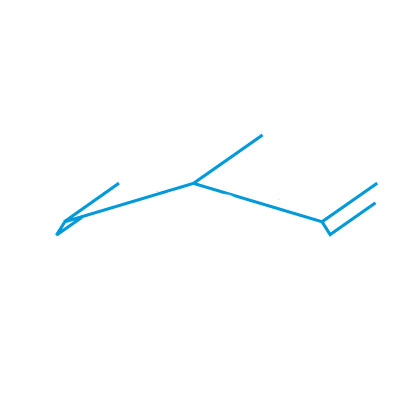

ridge flashing

Size: 330 x 330mm
Angle: As required
Girth: 660mm

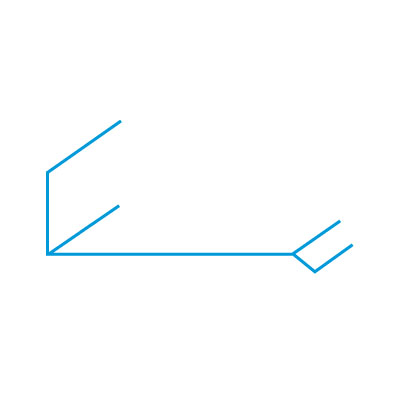

side wall flashing

Size:
• Saflok 410 = 94 x 330 x 38mm
• Saflok 700 = 94 x 330 x 38mm
• Newlok = 132 x 282 x 48mm
Angle: 90°
Girth: 462mm

under-over flashing

Size: 330 x 330mm
Angle: As required
Girth: 660mm

valley flashing

Size: 330 x 330mm
Angle: As required
Girth: 660mm

ZINCAL®

ZINCAL® is a classic unpainted AZ coated steel.
• Considerable increase in service life (due to 4 times greater corrosion resistance)
• Superior thermal protection
• Lasting aesthetic value

•  Safal Steel Material Warranty

COLORPLUS®

Colorplus® is a factory pre-painted product, with colour applied over Zincal® substrate, offering all the advantages of Zincal® with the option of colour for added aesthestic appeal. The Colorplus® paint system has been carefully selected to endure the harsh African climate, to limit chalking and ensure optimal colour integrity. It also helps to resist dirt or contaminant retention, so that the surface stays clean and the colour is fresh looking for many years.

•  Safal Steel Material Warranty
