sheet profile
Saflok 410® profile

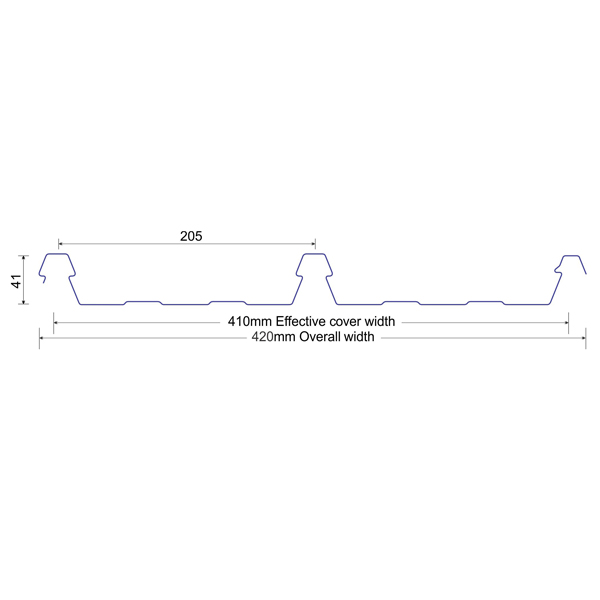

• Saflok 410® concealed fix is an angular interlocking standing seam trapezoidal rib profile roll formed on mobile mills to any length.

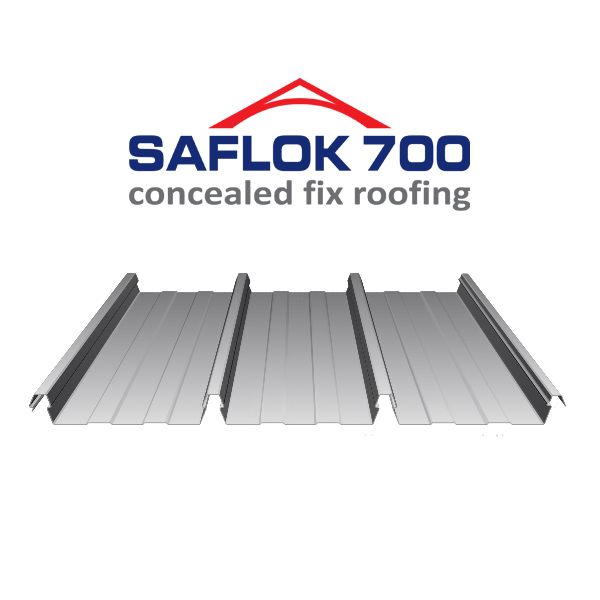

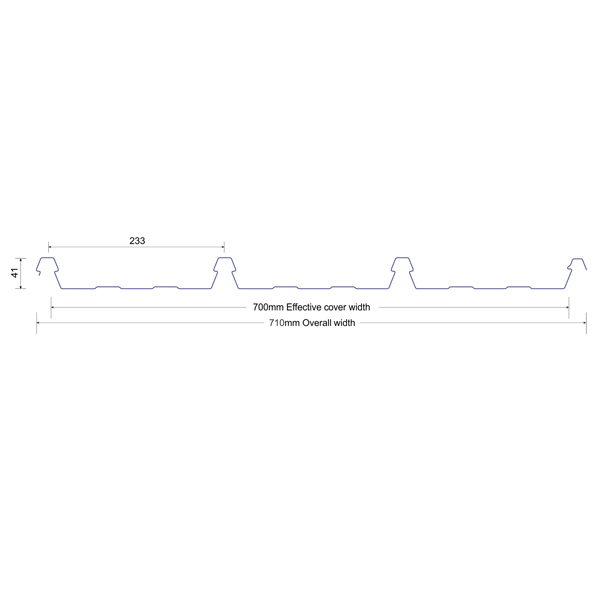

• Cover width = 410mmSaflok 700® profile
• Saflok 700 is a concealed fix profile, with an angular interlocking standing seam trapezoidal rib profile, roll formed on mobile mills countrywide.

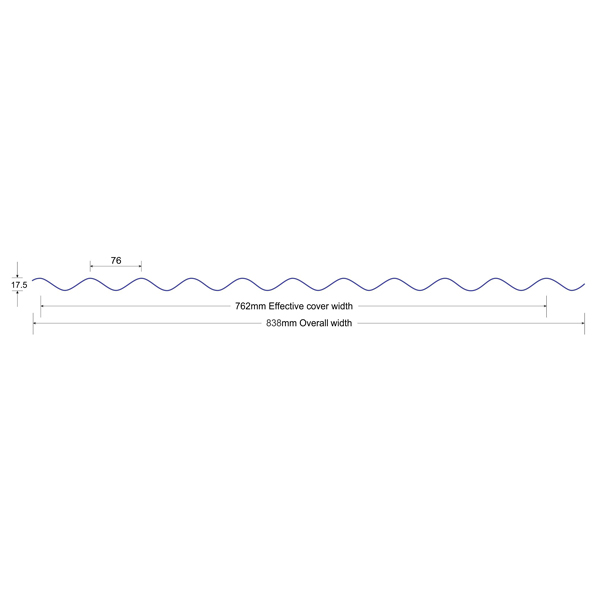

• Cover width = 700mmClassicorr® Corrugated profile
• Classicorr® Corrugated sinusoidal profile sheets can be used as roofing and cladding material. With its origins dating back to the Victorian era, it is probably the most commonly known sheeting profile used in the world today.
• Cover width = 762mm
• Rib height = 17,5mm
• Corrugations per sheets = 10,5No.
• Can be factory cranked, curved and bullnosedFluteline® profile

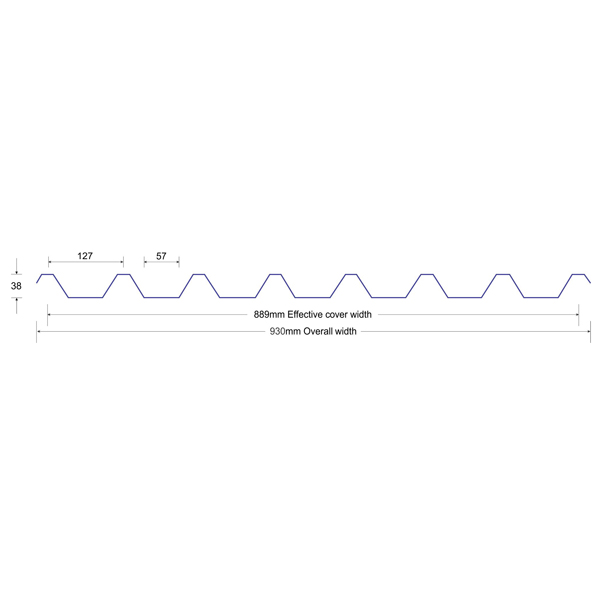

• Fluteline is an angular trapezoidal fluted sheet with similar characteristics to IBR but having a wider effective cover of 889mm for greater economy.
• Cover width = 889mm
• Rib height = 38mm
• Deep and broad flutes ensures excellent drainage characteristics
• Offers optimum strength to weight & is designed to provide the most advantageous load/span characteristics
• Can be factory cranked, curved and bullnosed
• On galvanised steel purlins it is recommended to make use of isolation tape to prevent bridging of the two dissimilar materialsTufdek® profile

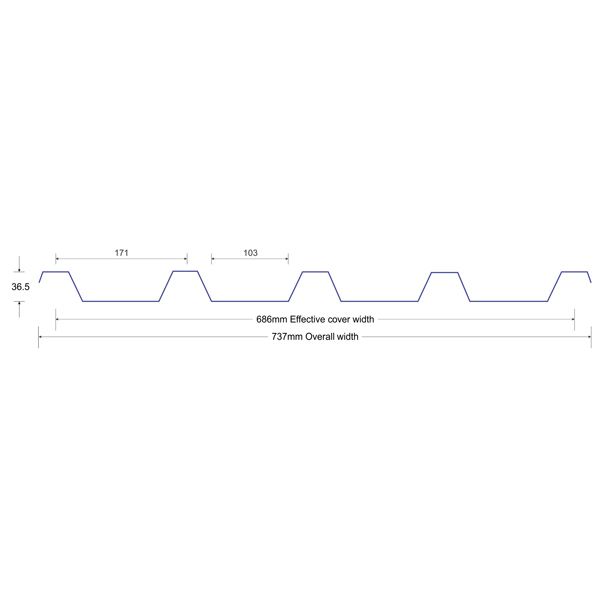

• Tufdek® IBR is an angular trapezoidal fluted profile sheet. Its bold appearance makes it both attractive and practical. IBR is an abbreviation for Inverted Box Rib.
• Cover width = 686mm
• Rib height = 36,5mm
• Deep and broad flutes ensures excellent drainage characteristics
• Designed to provide the most advantageous load/span characteristics
• The option of having stiffening ribs in the sheet help remove oil canning from the broad flute
• Can be factory cranked, curved and bullnosedWidedek® profile

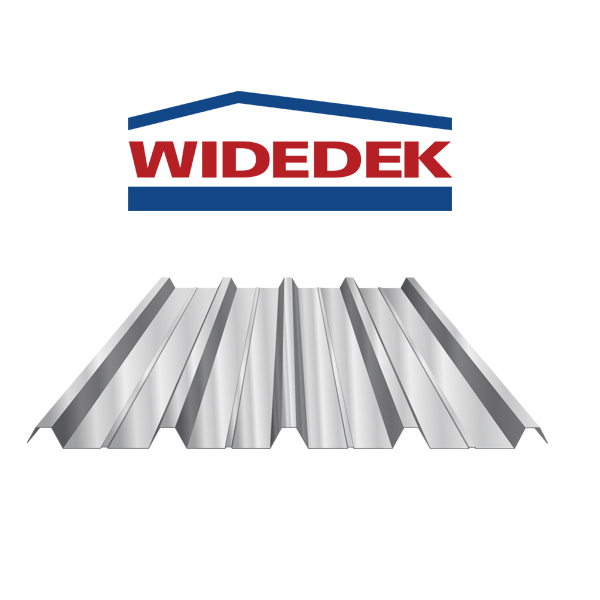

• Widedek® is an angular trapezoidal fluted sheet and is similar in appearance to IBR profiled sheeting, the difference being the cover width of the sheet and the depth of the flutes.
• Cover width = 760mm
• Rib height = 29mm
• Better cover width means a saving of ±10% on sheeting purchased
• Less sheets are required to be erected, thus saving time and labour
• The spanning capacity is greater than the corrugated profile
• Can be factory cranked, curved and bullnosed
cranking or bullnose option
reverse bullnose - roof slope down

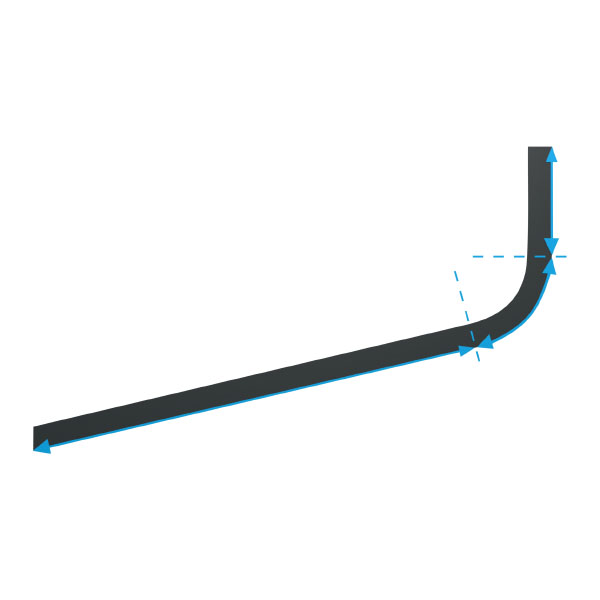

reverse bullnose - roof slope down and roof slope up
reverse bullnose - roof slope up

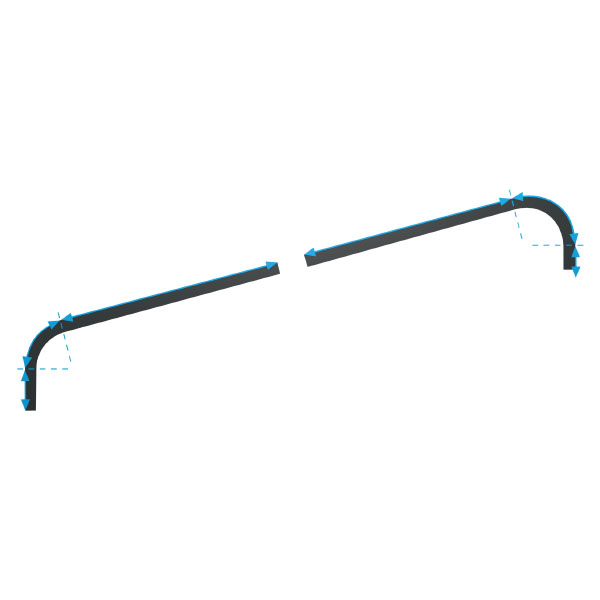

normal bullnose - roof slope down

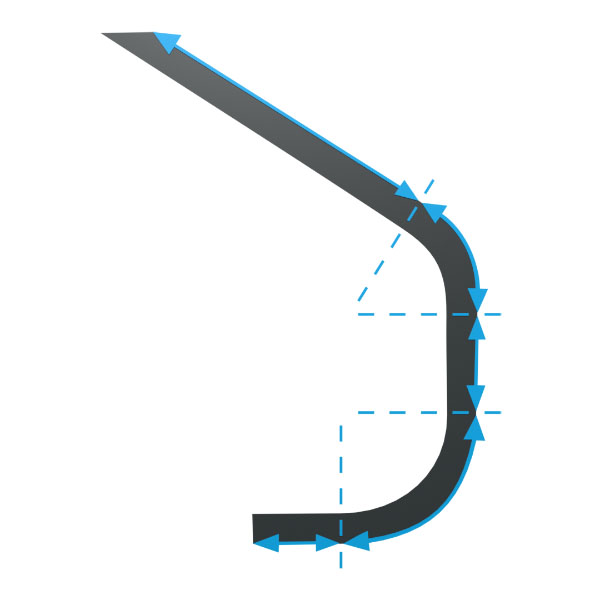

monitor crank

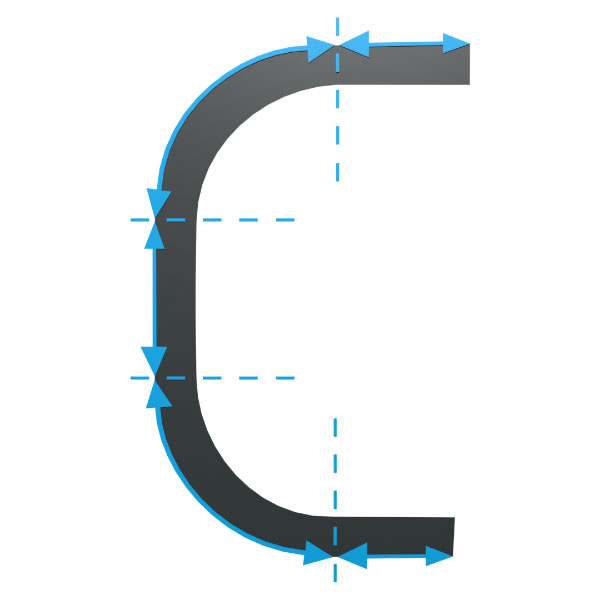

double crank

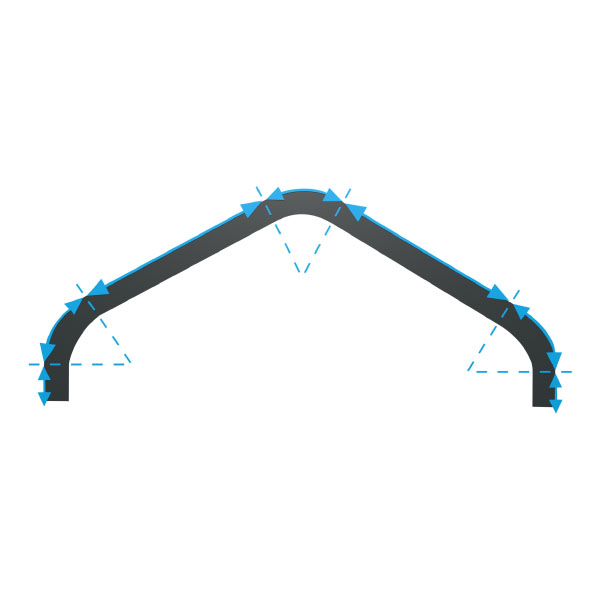

triple crank
bullnose off centre crank

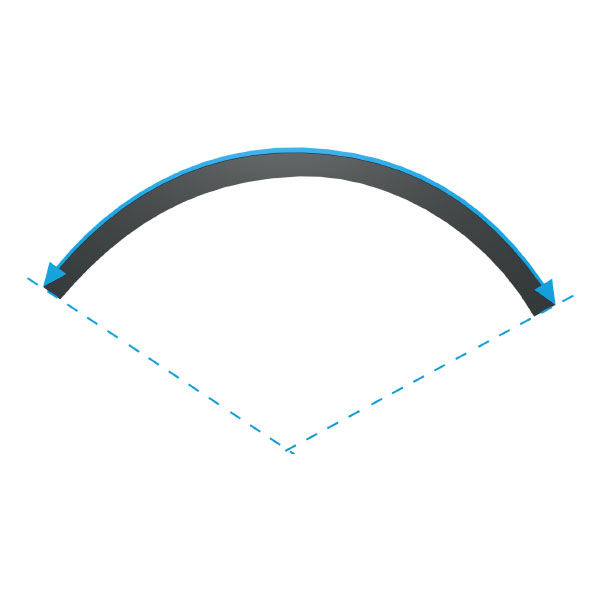

radius curved sheet crank
half circle crank

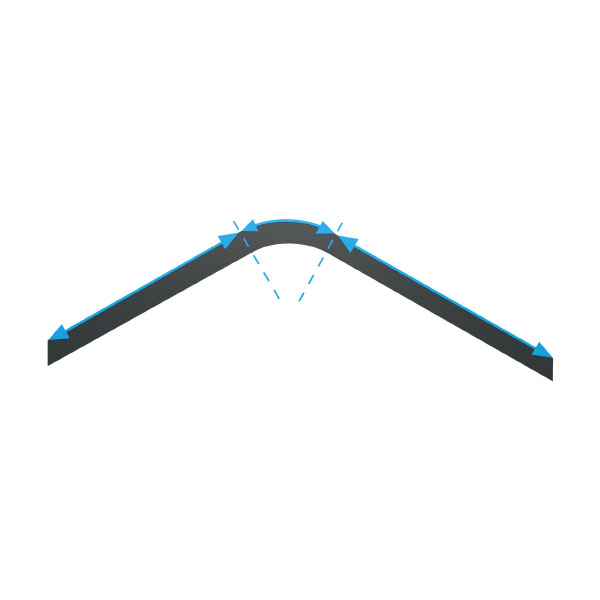

centre crank
off centre crank
sheet material
ZINCAL®
ZINCAL® is a classic unpainted AZ coated steel.
• Considerable increase in service life (due to 4 times greater corrosion resistance than traditional galvanised steel)
• Superior thermal protection
• Lasting aesthetic valueCOLORPLUS®
Colorplus® is a factory pre-painted product, with colour applied over Zincal® substrate, offering all the advantages of Zincal® with the option of colour for added aesthestic appeal. The Colorplus® paint system has been carefully selected to endure the harsh African climate, to limit chalking and ensure optimal colour integrity. It also helps to resist dirt or contaminant retention, so that the surface stays clean and the colour is fresh looking for many years.
COLORPLUS® sheet colour
Chalk (COLORPLUS®)
Deep Ocean (COLORPLUS®)
Desert Sand (COLORPLUS®)
Rain Cloud (COLORPLUS®)
Rain Forest (COLORPLUS®)
Rustic Bark (COLORPLUS®)
Savannah (COLORPLUS®)
Seaspray (COLORPLUS®)
Slate (COLORPLUS®)
Sunset Red (COLORPLUS®)
Thunderstorm (COLORPLUS®)
Rain Cloud (COLORPLUS® Matt)
Seaspray (COLORPLUS® Matt)
Thunderstorm (COLORPLUS® Matt)
Rain cloud (COLORPLUS® Textured)
Rustic Bark (COLORPLUS® Textured)
Thunderstorm (COLORPLUS® Textured)
(colour to be confirmed on finalisation)
Cranked roofing and cladding sheets
