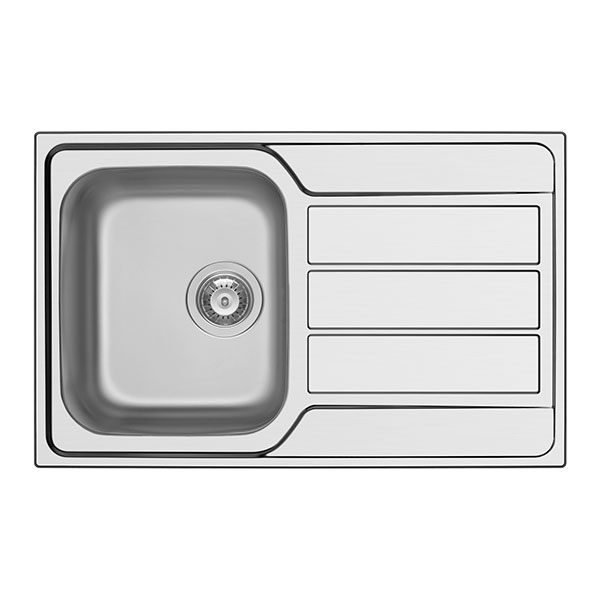

790 x 500mm wide Athena series SDI-790-SEA

ATHENA SERIES REVERSIBLE DROP IN SINK :
• Configuration = single end bowl
• Overall size = 790 x 500 x 180mm deep

•  SDI-790-SEA Revit Drawing

1160 x 500mm wide Athena series SDI-1160-DEA

ATHENA SERIES REVERSIBLE DROP IN SINK :
• Configuration = double end bowl
• Overall size = 1160 x 500 x 165mm deep

•  SDI-1160-DEA Revit Drawing

1350 x 480mm wide Athena series SDI-1350-DE

ATHENA SERIES REVERSIBLE DROP IN SINK :
• Configuration = double end bowl with tidy bowl
• Overall size = 1350 x 480 x 150mm deep

•  SDI-1350-DE Revit Drawing

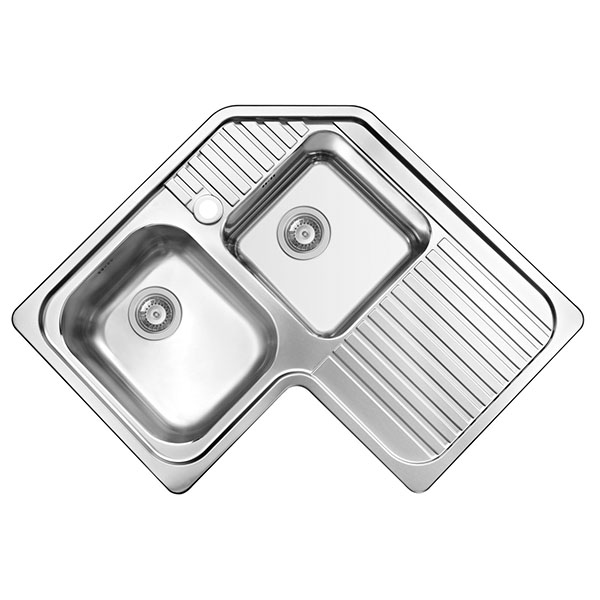

830 x 830 x 500mm wide Celeste series SDI-CORN-LH

DROP-IN SINK SDI-CORN-LH :
• Configuration = double corner bowl
• Overall size = 830 x 830 x 500mm wide

•  SDI-CORN-LH Revit Drawing

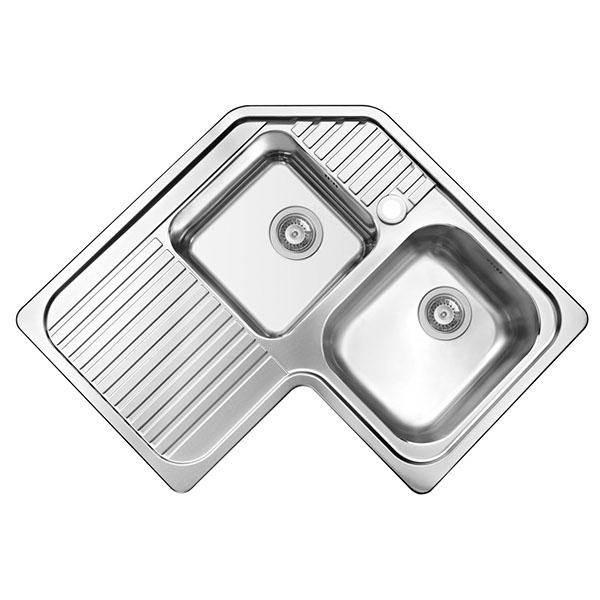

830 x 830 x 500mm wide Celeste series SDI-CORN-RH

DROP-IN SINK SDI-CORN-RH:
• Configuration = double corner bowl
• Overall size = 830 x 830 x 500mm wide

•  SDI-CORN-RH Revit Drawing

860 x 500mm wide Crystalon series SDI-860-SBGB

CRYSTALON SERIES REVERSIBLE DROP IN SINK :
• Black
• Configuration = single end bowl
• Overall size = 860 x 500 x 200mm deep

•  SDI-860-SBGB Revit Drawing

860 x 500mm wide Crystalon series SDI-860-SBGW

CRYSTALON SERIES REVERSIBLE DROP IN SINK :
• White
• Configuration = single end bowl
• Overall size = 860 x 500 x 200mm deep

1160 x 500mm wide Crystalon series SDI-1160-DBGB

CRYSTALON SERIES REVERSIBLE DROP IN SINK :
• Black
• Configuration = double end bowl
• Overall size = 1160 x 500 x 200mm deep

•  SDI-1160-DBGB Revit Drawing

1160 x 500mm wide Crystalon series SDI-1160-DBGW

CRYSTALON SERIES REVERSIBLE DROP IN SINK :
• White
• Configuration = double end bowl
• Overall size = 1160 x 500 x 200mm deep

1450 x 500mm wide Hercules series SDI-1450-DE

DROP-IN SINK SDI-1450-DE:
• Configuration = double end bowl
• Overall size = 1450 x 500mm wide

•  SDI-1450-DE Revit Drawing

1500 x 500mm wide Hercules series SDI-1500-DC

DROP-IN SINK SDI-1500-DC:
• Configuration = double centre bowl
• Overall size = 1500 x 500mm wide

•  SDI-1500-DC Revit Drawing

304 x 180mm wide Iris series SDI-290-SUM

IRIS SERIES UNDERMOUNTED SINK :
• Configuration = single bowl undermount
• Overall size = 304 x 180 x 200mm deep

•  SDI-290-SUM Revit Drawing

766 x 456mm wide Iris series SDI-770-DUM

IRIS SERIES UNDERMOUNTED SINK :
• Configuration = double bowl undermount
• Overall size = 766 x 456 x 180mm deep

•  SDI-770-DUM Revit Drawing

472 x 422mm wide Iris series SDI-450-SUM

UNDERMOUNT SINK SDI-450-SUM:
• Configuration = single bowl
• Overall size = 472 x 422 x 200mm deep

•  SDI-450-SUM Revit Drawing

450mm diameter Kiba series SPB-STDP

KIBA SERIES DROP-IN PREPARATION :
• Configuration = single bowl
• Overall size = 450mm diameter x 150mm deep

•  SPB-STDP Revit Drawing

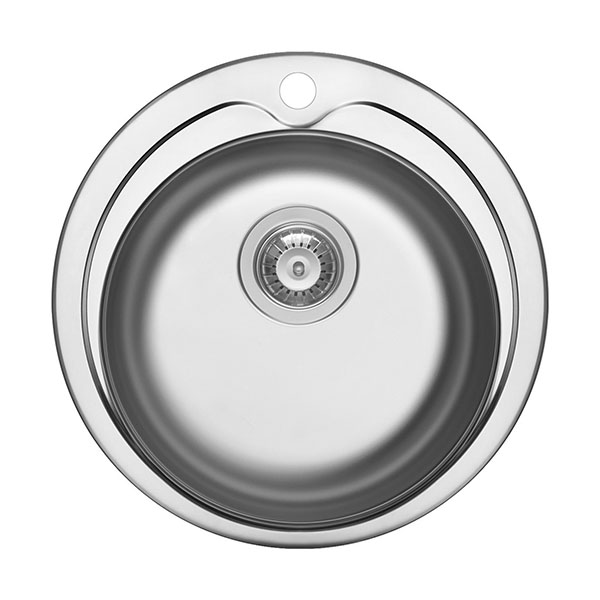

485mm diameter Kiba series SPB-THP

KIBA SERIES DROP-IN PREPARATION :
• Configuration = single bowl with tap landing
• Overall size = 485mm diameter x 163mm deep

•  SPB-THP Revit Drawing

850 x 450mm wide Kiba series SDI-850-DBR

KIBA SERIES DOUBLE DROP-IN PREPARATION BOWLS :
• Configuration = double bowl
• Overall size = 850mm diameter x 160mm deep

•  SDI-850-DBR Revit Drawing

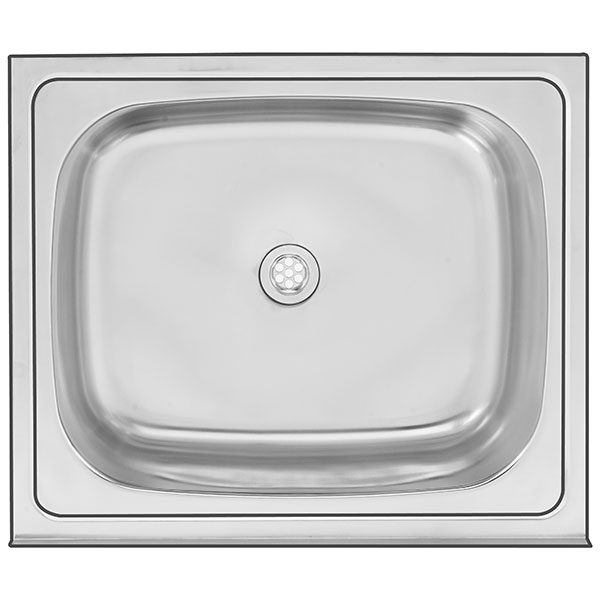

600 x 500mm wide Laundry series SWT-SON

SIT-ON/WALL MOUNTED WASH TROUGH SWT-SON:
• Configuration = sit-on or wall mounted single bowl
• Overall size = 600 x 500mm wide

•  SWT-SON Line Diagram
•  SWT-SON Revit Drawing

550 x 450mm wide Laundry series SWT-RIBP

LAUNDRY SERIES DROP-IN WASHTROUGH :
• Configuration = single trough with rib
• Overall size = 550 x 450 x 230mm deep

•  SWT-RIBP Revit Drawing

610mm x 480mm wide Laundry series SWT-SPACE

LAUNDRY SERIES DROP-IN WASHTROUGH :
• Configuration = single trough
• Overall size = 610 x 480 x 200mm deep

•  SWT-SPACE Revit Drawing

550 x 450mm wide Laundry series SWT-WM

LAUNDRY SERIES WALL MOUNTED WASHTROUGH :
• Configuration = single trough with rib
• Overall size = 550 x 450 x 230mm deep

•  SWT-WM Revit Drawing

630 x 470mm wide Laundry series SWT-AUSR

DROP-IN WASH TROUGH SWT-AUSR:
• Configuration = inset single bowl
• Overall size = 630 x 470mm wide

•  Drop-In Wash Trough SWT-AUSR CAD Drawing
•  SWT-AUSR Revit Drawing

440 x 440mm wide Lydia series SDI-400-SUM

LYDIA SERIES UNDERMOUNTED SINK :
• Configuration = single bowl undermount
• Overall size = 440 x 440 x 200mm deep

•  SDI-400-SUM Revit Drawing

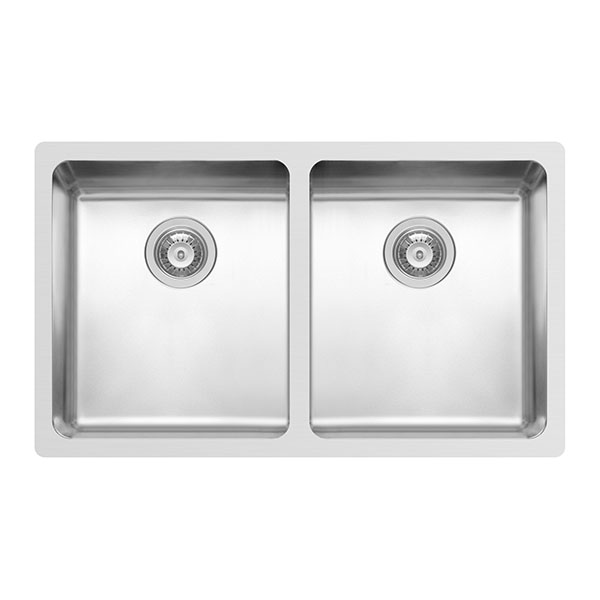

766 x 456mm wide Lydia series SDI-776-DUM

LYDIA SERIES UNDERMOUNTED SINK :
• Configuration = double bowl undermount
• Overall size = 766 x 456 x 200mm deep

•  SDI-776-DUM Revit Drawing

490 x 440mm wide Lydia series SDI-450-SUML

LYDIA SERIES UNDERMOUNTED SINK :
• Configuration = single bowl undermount
• Overall size = 490 x 440 x 200mm deep

•  SDI-450-SUML Revit Drawing

1000 x 520mm wide Olynthos series SDI-1000-SFL

OLYNTHOS SERIES FLUSH MOUNTED SINK :
• Configuration = single end bowl
• Overall size = 1000 x 520 x 200mm deep

•  SDI-1000-SFL Revit Drawing

1000 x 520mm wide Olynthos series SDI-1000-SFR

OLYNTHOS SERIES FLUSH MOUNTED SINK :
• Configuration = single end bowl
• Overall size = 1000 x 520 x 200mm deep

1160 x 520mm wide Olynthos series SDI-1160-DFPL

OLYNTHOS SERIES FLUSH MOUNTED SINK :
• Configuration = double end bowl
• Overall size = 1160 x 520 x 200mm deep

•  SDI-1160-DFPL Revit Drawing

1160 x 520mm wide Olynthos series SDI-1160-DFPR

OLYNTHOS SERIES FLUSH MOUNTED SINK :
• Configuration = double end bowl
• Overall size = 1160 x 520 x 200mm deep
