Record and Strongroom Doors

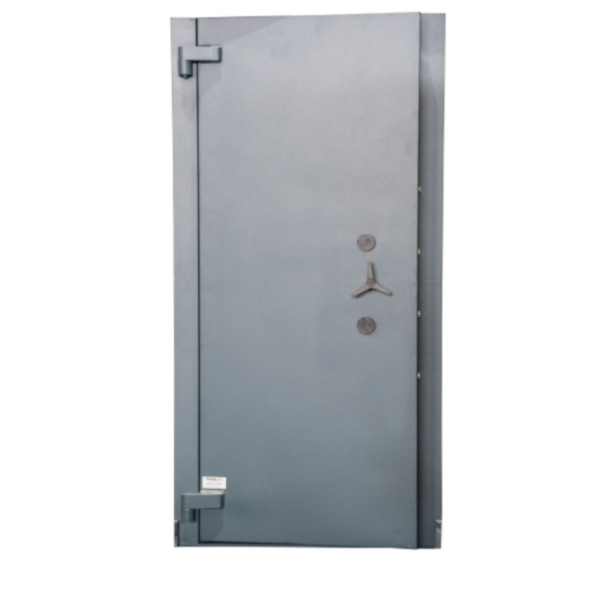

• CAT1



  • Clearance 90° width = 766mm
  • Clearance 180° width = 830mm
  • Clearance 90° height = 1880mm
  • Clearance 180° height = 1880mm
  • Weight = 200kg
  • Material = 10mm steel plate
  • Boltwork = 4 x 25mm locking bolts
  • Lock = 1 x key lock

  •  Diamond Datasheets

• CAT2ADM



  • Clearance 90° width = 665mm
  • Clearance 180° width = 770mm
  • Clearance 90° height = 1895mm
  • Clearance 180° height = 1895mm
  • Weight = 384kg
  • Material = 50mm Borox™ SP barrier material
  • Boltwork = 4 x 32mm 1-way moving locking bolts
  • Lock = 2 x key locks

• CAT2 Light Duty



  • Clearance 90° width = 764mm
  • Clearance 180° width = 830mm
  • Clearance 90° height = 1880mm
  • Clearance 180° height = 1880mm
  • Weight = 240kg
  • Material = 12mm steel plate
  • Boltwork = 4 x 25mm locking bolts
  • Lock = 2 x key locks

  •  Diamond Datasheets

• CAT2 Heavy Duty



  • Clearance 90° width = 758mm
  • Clearance 180° width = 830mm
  • Clearance 90° height = 1880mm
  • Clearance 180° height = 1880mm
  • Weight = 330kg
  • Material = 20mm steel plate
  • Boltwork = 6 x 25mm locking bolts
  • Lock = 2 x key locks

  •  Diamond CAT 2 Right Hand
  •  Diamond Datasheets

• CAT3



  • Clearance 90° width = 665mm
  • Clearance 180° width = 770mm
  • Clearance 90° height = 1895mm
  • Clearance 180° height = 1895mm
  • Weight = 450kg
  • Material = 50mm Borox™ SP barrier material
  • Boltwork = 6 x 32mm 3-way moving locking bolts
  • Lock = 2 x key locks

  •  Diamond Datasheets

• Record



  • Clearance 90° width = 770mm
  • Clearance 180° width = 830mm
  • Clearance 180° height = 1880mm
  • Clearance 180° height = 1880mm
  • Weight = 140kg
  • Material = 6mm steel plate
  • Boltwork = 4 x 25mm locking bolts
  • Lock = 1 x key lock

  •  Diamond Datasheets
