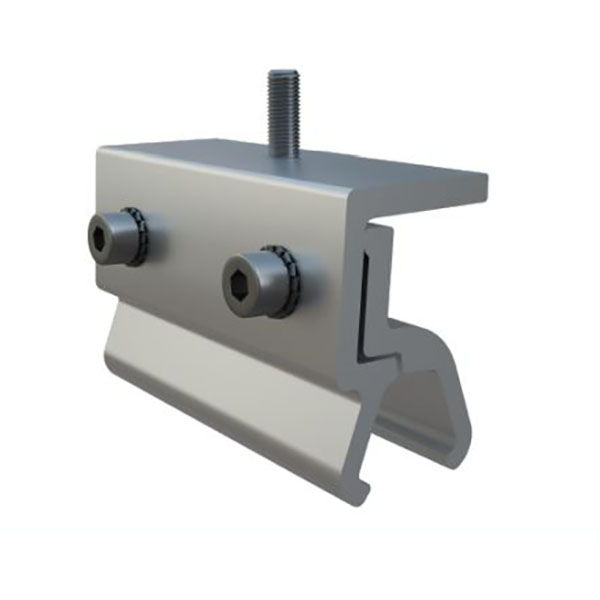

KT-PV Clamp™
A 75mm structural clamping component, manufactured from aluminium, suited to fit the GRS Klip-Tite profile. The clamp will include hardware manufactured from stainless steel; this includes two clamping bolts and one adaptor bolt, all to be M8 Stainless steel socket cap screws. The KT-PV Clamp™ has a non-abrasive clamping action and is compatible with most common coated roofing materials, except copper. It is available in three assembly options (M8 stud, M8 threaded hole or M8 slotted hole along the length of the clamp) to suit various rail-mounted PV systems.
BB-PV Clamp™
A 100mm structural clamping component, manufactured from aluminium, suited to fit GRS Brownbuilt profile.The clamp will include hardware manufactured from stainless steel; this includes two clamping bolts and one adaptor bolt, all to be M8 stainless steel socket cap screws. The BB-PV Clamp™ has a non-abrasive clamping action and is compatible with most common coated roofing materials, except copper. It is available in three assembly options to suit various rail-mounted PV systems. The mounting system allows for ease of installation and a sufficient air gap for PV Panels.
ZT-PV Clamp™
A 100mm structural clamping component, manufactured from aluminium, suited to fit GRS Zip-Tek profile. The clamp will include hardware manufactured from stainless steel; this includes two clamping screws M6 stainless steel socket cap screws with spring washer and nut. The ZT-PV Clamp™ has a non-abrasive clamping action and is compatible with most common coated roofing materials, except copper. It is supplied with one M8 slotted hole for fixing of PV system.
sheet profile
Klip-Tite™
KLIP-TITE™:
A rigid profile with imroved properties providing improved clipping and wind-uplift resistance through it`s unique shape and transverse stiffeners.
• cover width = 700mm
• minimum roof pitch = 2°
• maximum roof pitch = 60°Klip-Lok 406™
KLIP-LOK 406™:
A concealed fix profile with a unique double interlocking side lap makes this profile a very fast installing roof sheet. This profile is ideally suited to low roof pitches.
• cover width = 406mm
• minimum roof pitch = 2°
• maximum roof pitch = 60°Klip-Lok 700™
KLIP-LOK 700™:
Similar to Klip-Lok 406™ but wider. The sheet is even faster to install yielding greater savings. The profile is ideally suited to low roof pitches.
• cover width = 700mm
• minimum roof pitch = 2°
• maximum roof pitch = 60°Zip-Tek 420
ZIPTEK 420:
A deep trough concealed fix standing seam profile suited for low pitch roofs.
• cover width = 424mm
• minimum roof pitch = 2°
• maximum roof pitch = 60°Zip-Tek 440
ZIPTEK 440:
A deep trough concealed fix standing seam profile suited for low pitch roofs.
• cover width = 440mm
• minimum roof pitch = 2°
• maximum roof pitch = 60°Brownbuilt™
BROWNBUILT™:
A concealed fix standing seam roofing which is fixed with concealed clips (no holes are made in the sheet) and is especially suited for low roof pitches.
• cover width = 406mm
• minimum roof pitch = 2°
• maximum roof pitch = 60°
