Hunter Douglas Architectural Linear ceilings

ceiling system

• Closed ceiling

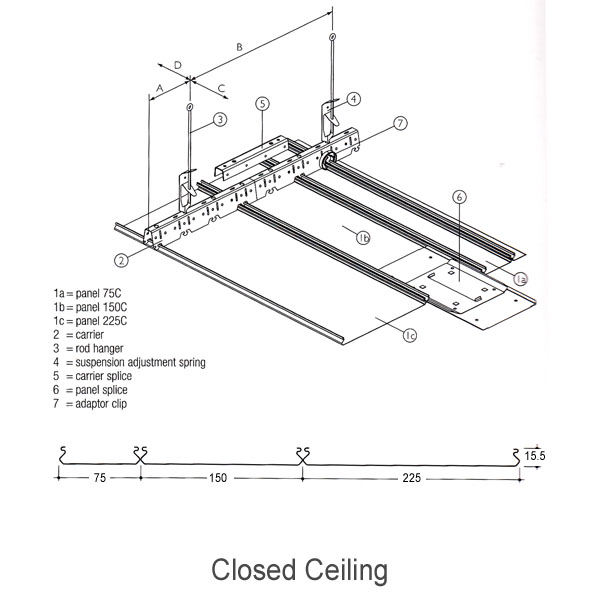

  Closed ceiling system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This ceiling system combines three widths of panel which are distinguished from other Hunter Douglas systems by their bevelled edges, when installed produces a closed smooth appearance.
  Suspension:
  The panels can be fixed to a universal carrier for all 3 widths, all the same or mixed. The panels are joined together using a panel splice whilst the carriers use the standard carrier connector. Cut perimeter panels should be supported by the adaptor clip.
  Widths:
  • 75mm
  • 150mm
  • 225mm

  •  Closed Ceiling Linear Ceiling Datasheet

• Multi-panel



  Multi-panel system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This ceiling system consists of box shaped panels in 5 varying widths. With this system there is the possibility to create a ceiling design with different widths and heights in one ceiling. The 20mm joint can be fitted with a V-shaped or U-shaped joint profile.
  Suspension:
  The panel carrier is provided with prongs to accommodate the panels in a module of 50mm or a multiple of this module. Carriers are joined by using the carrier splice.
  Widths:
  • 30mm
  • 80mm
  • 130mm
  • 180mm

  •  Multi-panel Linear Ceiling Datasheet

• 84B



  84B system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This system consists of box shaped panels which can be easily clipped on a carrier. Panels can be joined by using a panel splice. An open joint of 16mm is creatd between the panels.
  Suspension:
  The panel carrier is provided with prongs to accomodate the panels in a standard module of 100mm. Carriers are connected by using the carrier splice.
  The system is designed to withstand the impact of all types of ball sports (DIN 18038). It is necessary to the fixing clips and adapt the carrier span.
  Width:
  • 84mm

  •  84B Linear Ceiling Datasheet

• 84C

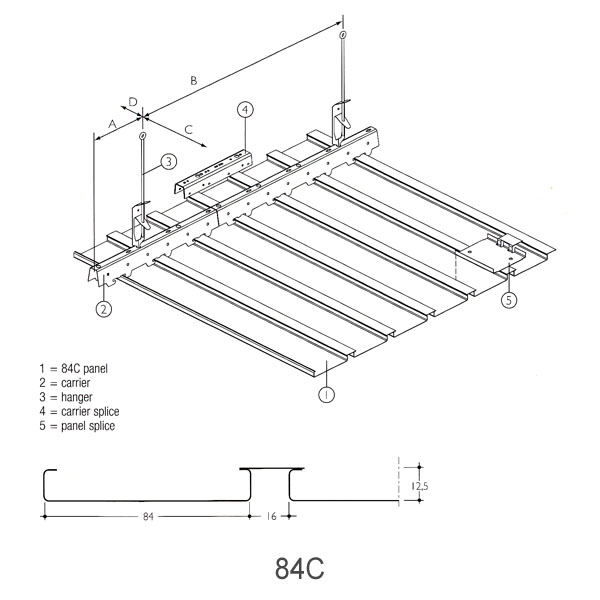

  84C system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This system consists of box shaped panels which can be easily clipped on a carrier. The 84mm wide panels feature a 24mm wide flange that closes off the 16mm joint between the panels.
  Suspension:
  The panel carrier is provided with prongs to accomodate the panels in a module of 100mm. Carriers are connected by using the carrier splice.
  Width:
  • 84mm

  •  84C Linear Ceiling Datasheet

• 84R



  84R system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This system consists of round edged panels which can be easily clipped on a carrier. Panels can be joined using the panel splice. The 16mm joint can be filled with a flush join profile to form a closed ceiling.
  Suspension:
  The panel carrier is provided with prongs to accomodate the panels in a standard module of 100mm. All carriers have a standard length of 5000mm and are connected by using the carrier splice.
  Width:
  • 84mm

  •  84R Linear Ceiling Datasheet

• 70U

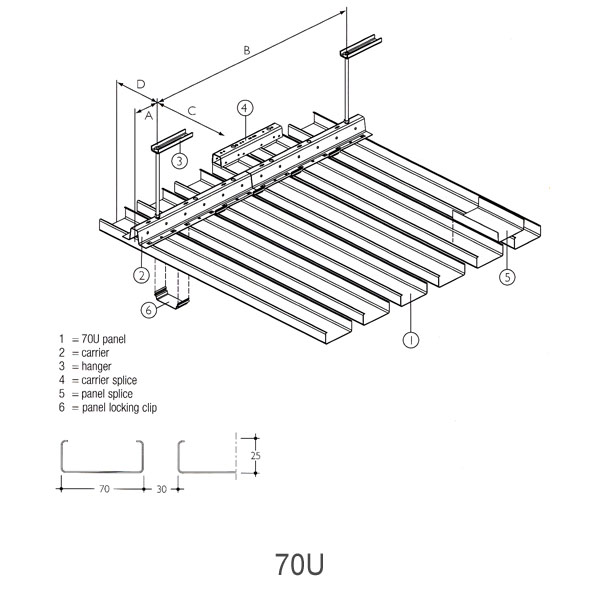

  70U system:
  Availability:
  Supply ex Hunter Douglas Europe. Lead time 8 to 10 weeks.
  Description:
  This system consists of box shaped 70mm wide steel or aluminium panels which are easily clipped on the 70U carrier. Panels are joined by using the panel splice.
  Suspension:
  The panel carrier is provided with prongs to accommodate the panels in a module of 100mm. Carriers are connected by using the carrier splice. Locking clips are fitted on the carrierbetween the panels in order to fully secure the panels.
  The system is designed to withstand the impact of all types of ball sports (DIN 18032). It is necessary to use the fixing clips and adapt the carrier span.
  Width:
  • 70mm

  •  70U Linear Ceiling Datasheet

• Closed ceiling



  Closed ceiling system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This ceiling system combines three widths of panel which are distinguished from other Hunter Douglas systems by their bevelled edges, when installed produces a closed smooth appearance.
  Suspension:
  The panels can be fixed to a universal carrier for all 3 widths, all the same or mixed. The panels are joined together using a panel splice whilst the carriers use the standard carrier connector. Cut perimeter panels should be supported by the adaptor clip.
  Widths:
  • 75mm
  • 150mm
  • 225mm

  •  Closed Ceiling Linear Ceiling Datasheet

• Multi-panel



  Multi-panel system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This ceiling system consists of box shaped panels in 5 varying widths. With this system there is the possibility to create a ceiling design with different widths and heights in one ceiling. The 20mm joint can be fitted with a V-shaped or U-shaped joint profile.
  Suspension:
  The panel carrier is provided with prongs to accommodate the panels in a module of 50mm or a multiple of this module. Carriers are joined by using the carrier splice.
  Widths:
  • 30mm
  • 80mm
  • 130mm
  • 180mm

  •  Multi-panel Linear Ceiling Datasheet

• 84B



  84B system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This system consists of box shaped panels which can be easily clipped on a carrier. Panels can be joined by using a panel splice. An open joint of 16mm is creatd between the panels.
  Suspension:
  The panel carrier is provided with prongs to accomodate the panels in a standard module of 100mm. Carriers are connected by using the carrier splice.
  The system is designed to withstand the impact of all types of ball sports (DIN 18038). It is necessary to the fixing clips and adapt the carrier span.
  Width:
  • 84mm

  •  84B Linear Ceiling Datasheet

• 84C



  84C system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This system consists of box shaped panels which can be easily clipped on a carrier. The 84mm wide panels feature a 24mm wide flange that closes off the 16mm joint between the panels.
  Suspension:
  The panel carrier is provided with prongs to accomodate the panels in a module of 100mm. Carriers are connected by using the carrier splice.
  Width:
  • 84mm

  •  84C Linear Ceiling Datasheet

• 84R



  84R system:
  Availability:
  Supply ex Hunter Douglas South Africa.
  Description:
  This system consists of round edged panels which can be easily clipped on a carrier. Panels can be joined using the panel splice. The 16mm joint can be filled with a flush join profile to form a closed ceiling.
  Suspension:
  The panel carrier is provided with prongs to accomodate the panels in a standard module of 100mm. All carriers have a standard length of 5000mm and are connected by using the carrier splice.
  Width:
  • 84mm

  •  84R Linear Ceiling Datasheet

• 70U



  70U system:
  Availability:
  Supply ex Hunter Douglas Europe. Lead time 8 to 10 weeks.
  Description:
  This system consists of box shaped 70mm wide steel or aluminium panels which are easily clipped on the 70U carrier. Panels are joined by using the panel splice.
  Suspension:
  The panel carrier is provided with prongs to accommodate the panels in a module of 100mm. Carriers are connected by using the carrier splice. Locking clips are fitted on the carrierbetween the panels in order to fully secure the panels.
  The system is designed to withstand the impact of all types of ball sports (DIN 18032). It is necessary to use the fixing clips and adapt the carrier span.
  Width:
  • 70mm

  •  70U Linear Ceiling Datasheet
