• Alupanel XT



  Architectural aluminium composite material

  • Panel thickness = 4mm
  • Aluminium thickness = 0.5mm
  • Core material = Polyethylene
  • Weight = 5.5kg/mm2
  • Bond integrity = 12.15N/mm
  • Tensile strength = 5.3kg/mm2
  • Rigidity = 0.354kN m2/m
  • Bending strength = 106Mpa
  • Bending elasdtic modulus = 9992Mpa
  • Yield strength = 3.7kg/mm2
  • Elongation at rupture (I0 = 5.65 AO12 -%) = 19.3
  • Thermal expansion coefcient = 2.4mm/moC
  • Sound attenuation (Rw) = 24dB
  • Temperature resistance = -50oC to +80oC

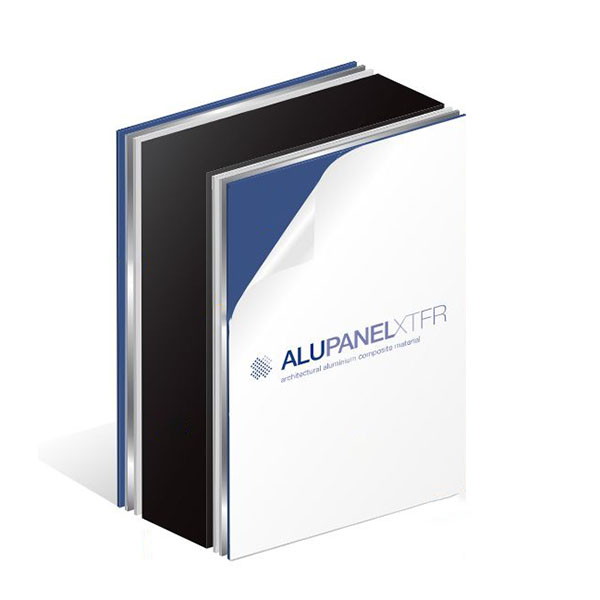

• Alupanel XTFR



  Architectural aluminium composite material with fire resistant core

  • Panel thickness = 4mm
  • Aluminium thickness = 0.5mm
  • Core material = Fire resistant
  • Weight = 7.44kg/mm2
  • Bond integrity = 13.05N/mm
  • Tensile strength = 6kg/mm2
  • Rigidity = 0.371kN m2/m
  • Bending strength = 127Mpa
  • Bending elasdtic modulus = 1007Mpa
  • Yield strength = 2.6kg/mm2
  • Elongation at rupture (I0 = 5.65 AO12 -%) = 14.1
  • Thermal expansion coefcient = 0.101mm/moC
  • Sound attenuation (Rw) = 27dB
  • Temperature resistance = -50oC to +80oC

• Alupanel XTA2



  Architectural aluminium composite material with non-combustable

  • Panel thickness = 4mm
  • Aluminium thickness = 0.5mm
  • Core material = non-combustable
  • Weight = 8.21kg/mm2
  • Bond integrity = 12.9N/mm
  • Tensile strength = 7.1kg/mm2
  • Rigidity = 0.390kN m2/m
  • Bending strength = 138Mpa
  • Bending elasdtic modulus = 1117Mpa
  • Yield strength = 3.8kg/mm2
  • Elongation at rupture (I0 = 5.65 AO12 -%) = 12
  • Thermal expansion coefcient = 0.14mm/moC
  • Sound attenuation (Rw) = 35dB
  • Temperature resistance = -50oC to +80oC
