Standard door frames
FA1 no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2466mm
• Frame section = 86 x 51mmFA1 open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 86 x 51mmFA1 open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 86 x 51mmFA5 no sill
• Door size = 762 x 2032mm high
• Width = 840mm
• Height = 2098mm
• Frame section = 86 x 51mmFB1 no sill
• Door size = 813 x 2032mm high
• Width = 873mm
• Height = 2084mm
• Frame section = 86 x 42mmFB1 open in
• Door size = 813 x 2032mm high
• Width = 873mm
• Height = 2100mm
• Frame section = 86 x 42mmFB1 open out
• Door size = 813 x 2032mm high
• Width = 873mm
• Height = 2088mm
• Frame section = 86 x 42mmFB5 no sill
• Door size = 762 x 2032mm high
• Width = 822mm
• Height = 2084mm
• Frame section = 86 x 42mmKFA1 no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2098mm
• Frame section = 86 x 51mmKFA1 open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 86 x 51mmKFA1 open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 86 x 51mmKFA5 no sill
• Door size = 762 x 2032mm high
• Width = 840mm
• Height = 2098mm
• Frame section = 86 x 51mmKFB1 no sill
• Door size = 813 x 2032mm high
• Width = 873mm
• Height = 2084mm
• Frame section = 86 x 42mmKFB1 open in
• Door size = 813 x 2032mm high
• Width = 873mm
• Height = 2100mm
• Frame section = 86 x 42mmKFB1 open out
• Door size = 813 x 2032mm high
• Width = 873mm
• Height = 2088mm
• Frame section = 86 x 42mmKFB5 no sill
• Door size = 762 x 2032mm high
• Width = 822mm
• Height = 2084mm
• Frame section = 86 x 42mmKKYFB1 no sill
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2085mm
• Frame section = 76 x 38mmKKYFB1 open in
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2096mm
• Frame section = 76 x 38mmKKYFB1 open out
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2084mm
• Frame section = 76 x 38mmKKYFB1S no sill
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2085mm
• Frame section = 76 x 38mmKKYFB1S open in
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2096mm
• Frame section = 76 x 38mmKKYFB1S open out
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2084mm
• Frame section = 76 x 38mmKKYFC1 no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2091mm
• Frame section = 76 x 51mmKKYFC1 open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 76 x 51mmKKYFC1 open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 76 x 51mmKKYFC1S no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2091mm
• Frame section = 76 x 51mmKKYFC1S open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 76 x 51mmKKYFC1S open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 76 x 51mmKKYFC5 no sill
• Door size = 762 x 2032mm high
• Width = 891mm
• Height = 2091mm
• Frame section = 76 x 51mmKKYFD1 no sill
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2078mm
• Frame section = 60 x 38mmKKYFD1 open in
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2078mm
• Frame section = 60 x 38mmKKYFD1 open out
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2078mm
• Frame section = 60 x 38mmKKYFH1 no sill
• Door size = 813 x 2032mm high
• Width = 897mm
• Height = 2101mm
• Frame section = 86 x 67mmKKYFH1 open in
• Door size = 813 x 2032mm high
• Width = 897mm
• Height = 2112mm
• Frame section = 86 x 67mmKKYFH1 open out
• Door size = 813 x 2032mm high
• Width = 897mm
• Height = 2128mm
• Frame section = 86 x 67mmKYFB1 no sill
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2058mm
• Frame section = 76 x 38mmKYFB1 open in
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2096mm
• Frame section = 76 x 38mmKYFB1 open out
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2084mm
• Frame section = 76 x 38mmKYFB1S no sill
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2085mm
• Frame section = 76 x 38mmKYFB1S open in
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2096mm
• Frame section = 76 x 38mmKYFB1S open out
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2084mm

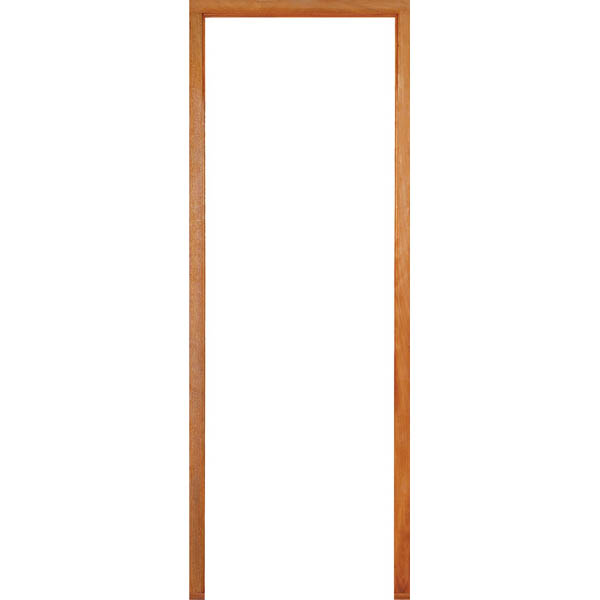

• Frame section = 76 x 38mmKYFC1 no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2091mm
• Frame section = 76 x 51mmKYFC1 open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 76 x 51mmKYFC1 open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 76 x 51mmKYFC1S no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2091mm
• Frame section = 76 x 51mmKYFC1S open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 76 x 51mmKYFC1S open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 76 x 51mmKYFC5 no sill
• Door size = 762 x 2032mm high
• Width = 891mm
• Height = 2091mm
• Frame section = 76 x 51mmKYFD1 no sill
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2078mm
• Frame section = 60 x 38mmKYFD1 open in
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2078mm
• Frame section = 60 x 38mmKYFD1 open out
• Door size = 813 x 2032mm high
• Width = 865mm
• Height = 2078mm
• Frame section = 60 x 38mmKYFH1 no sill
• Door size = 813 x 2032mm high
• Width = 897mm
• Height = 2101mm
• Frame section = 86 x 67mmKYFH1 open in
• Door size = 813 x 2032mm high
• Width = 897mm
• Height = 2112mm
• Frame section = 86 x 67mmKYFH1 open out
• Door size = 813 x 2032mm high
• Width = 897mm
• Height = 2128mm
• Frame section = 86 x 67mmSK1
• Door size = 813 x 2032mm high
• Width = 925mm
• Height = 2132mm
• Frame section = 90 x 70mmSK1 no sill
• Door size = 813 x 2032mm high
• Width = 923mm
• Height = 2442mm
• Frame section = 86 x 67mmSK1 open in
• Door size = 813 x 2032mm high
• Width = 923mm
• Height = 2453mm
• Frame section = 86 x 67mmSK1 open out
• Door size = 1210 x 2032mm high
• Width = 923mm
• Height = 2440mm
• Frame section = 86 x 67mmSK1B open in
• Door size = 813 x 2032mm high
• Width = 923mm
• Height = 2502mm
• Frame section = 86 x 67mmSK1B open out
• Door size = 813 x 2032mm high
• Width = 923mm
• Height = 2492mm
• Frame section = 86 x 67mmSK6 no sill
• Door size = 762 x 2032mm high
• Width = 872mm
• Height = 2114mm
• Frame section = 86 x 67mmSKA1 no sill
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2098mm
• Frame section = 86 x 51mmSKA1 open in
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2109mm
• Frame section = 86 x 51mmSKA1 open out
• Door size = 813 x 2032mm high
• Width = 891mm
• Height = 2096mm
• Frame section = 86 x 51mmSKA5 no sill
• Door size = 762 x 2032mm high
• Width = 840mm
• Height = 2098mm
• Frame section = 86 x 51mmSLF1L open in
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF1L open out
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2097mm
• Frame section = 76 x 51mmSLF1R open in
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF1R open out
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2097mm
• Frame section = 76 x 51mmSLF1SPL open in
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF1SPL open out
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2097mm
• Frame section = 76 x 51mmSLF1SPR open in
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF1SPR open out
• Door size = 813 x 2032mm high
• Width = 1311mm
• Height = 2097mm
• Frame section = 76 x 51mm
Double door frames
FA4 no sill
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2098mm
• Frame section = 86 x 51mmFA4 open in
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2109mm
• Frame section = 86 x 51mmFA4 open out
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2096mm
• Frame section = 86 x 51mmFB4 no sill
• Door size = 1612 x 2032mm high
• Width = 1672mm
• Height = 2084mm
• Frame section = 86 x 42mmFB4 open in
• Door size = 1612 x 2032mm high
• Width = 1672mm
• Height = 2100mm
• Frame section = 86 x 42mmFB4 open out
• Door size = 1612 x 2032mm high
• Width = 1672mm
• Height = 2088mm
• Frame section = 86 x 42mmKFA4 no sill
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2098mm
• Frame section = 86 x 51mmKFA4 open in
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2109mm
• Frame section = 86 x 51mmKFA4 open out
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2096mm
• Frame section = 86 x 51mmKFB4 no sill
• Door size = 1612 x 2032mm high
• Width = 1672mm
• Height = 2084mm
• Frame section = 86 x 42mmKFB4 open in
• Door size = 1612 x 2032mm high
• Width = 1672mm
• Height = 2100mm
• Frame section = 86 x 42mmKFB4 open out
• Door size = 1612 x 2032mm high
• Width = 1672mm
• Height = 2088mm

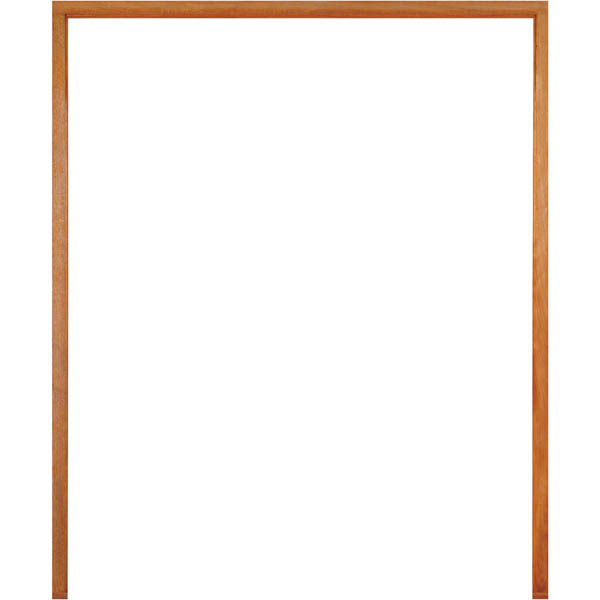

• Frame section = 86 x 42mmSK3 no sill
• Door size = 1612 x 2032mm high
• Width = 1722mm
• Height = 2114mm
• Frame section = 86 x 67mmSK3 open in
• Door size = 1612 x 2032mm high
• Width = 1722mm
• Height = 2125mm
• Frame section = 86 x 67mmSK3 open out
• Door size = 1612 x 2032mm high
• Width = 1722mm
• Height = 2112mm

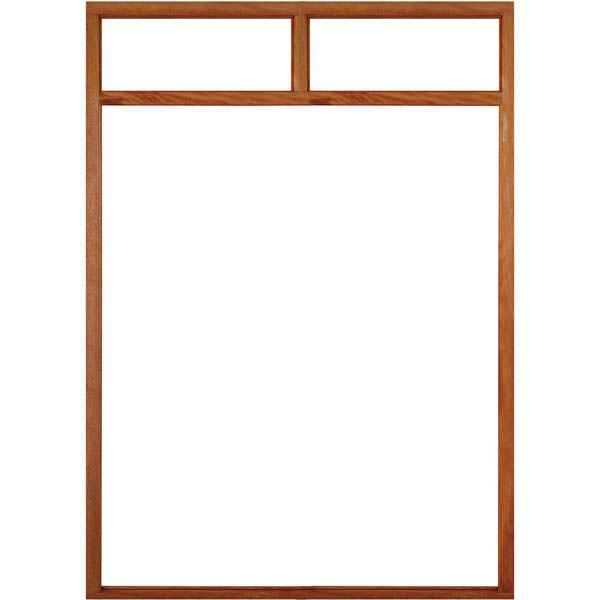

• Frame section = 86 x 67mmSK3B open in
• Door size = 1612 x 2032mm high
• Width = 1722mm
• Height = 2502mm
• Frame section = 86 x 67mmSK3B open out
• Door size = 1612 x 2032mm high
• Width = 1722mm
• Height = 2492mm
• Frame section = 86 x 67mmSKA3 no sill
• Door size = 1612 x 2032mm high
• Width = 1589mm
• Height = 2098mm
• Frame section = 86 x 51mmSKA4 no sill
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2098mm
• Frame section = 86 x 51mmSKA4 open in
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2109mm
• Frame section = 86 x 51mmSKA4 open out
• Door size = 1612 x 2032mm high
• Width = 1690mm
• Height = 2096mm

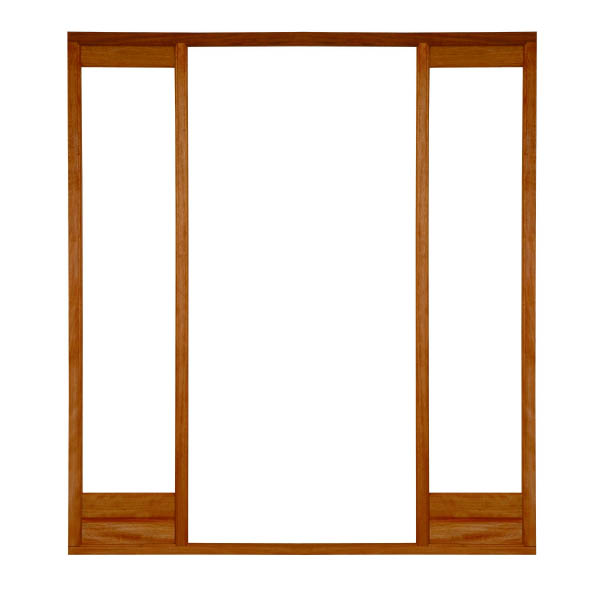

• Frame section = 86 x 51mmSLF4 open in
• Door size = 1612 x 2032mm high
• Width = 1731mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF4 open out
• Door size = 1612 x 2032mm high
• Width = 1731mm
• Height = 2097mm
• Frame section = 76 x 51mmSLF4/1612 open in
• Door size = 1612 x 2032mm high
• Width = 2530mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF4/1612 open out
• Door size = 1612 x 2032mm high
• Width = 2530mm
• Height = 2097mm
• Frame section = 76 x 51mmSLF4SP open in
• Door size = 1612 x 2032mm high
• Width = 1731mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF4SP open out
• Door size = 1612 x 2032mm high
• Width = 1731mm
• Height = 2097mm
• Frame section = 76 x 51mmSLF4SP/1612 open in
• Door size = 1612 x 2032mm high
• Width = 2530mm
• Height = 2109mm
• Frame section = 76 x 51mmSLF4SP/1612 open out
• Door size = 1612 x 2032mm high
• Width = 2530mm
• Height = 2097mm
• Frame section = 76 x 51mm
Pivot door frames
FA2 no sill
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2098mm
• Frame section = 86 x 51mmFA2 open in
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2109mm
• Frame section = 86 x 51mmFA2 open out
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2096mm
• Frame section = 86 x 51mmFB2 no sill
• Door size = 1210 x 2032mm high
• Width = 1270mm
• Height = 2084mm
• Frame section = 86 x 42mmFB2 open in
• Door size = 1210 x 2032mm high
• Width = 1270mm
• Height = 2100mm
• Frame section = 86 x 42mmFB2 open out
• Door size = 1210 x 2032mm high
• Width = 1270mm
• Height = 2088mm
• Frame section = 86 x 42mmKFA2 no sill
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2098mm
• Frame section = 86 x 51mmKFA2 open in
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2109mm
• Frame section = 86 x 51mmKFA2 open out
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2096mm
• Frame section = 86 x 51mmKFB2 no sill
• Door size = 1210 x 2032mm high
• Width = 1270mm
• Height = 2084mm
• Frame section = 86 x 42mmKFB2 open in
• Door size = 1210 x 2032mm high
• Width = 1270mm
• Height = 2100mm
• Frame section = 86 x 42mmKFB2 open out
• Door size = 1210 x 2032mm high
• Width = 1270mm
• Height = 2088mm
• Frame section = 86 x 42mmSK1 open out
• Door size = 1210 x 2032mm high
• Width = 923mm
• Height = 2440mm

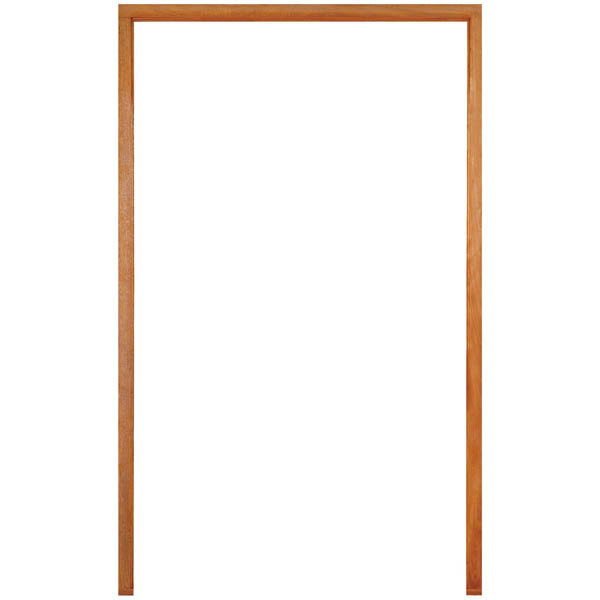

• Frame section = 86 x 67mmSK2 no sill
• Door size = 1210 x 2032mm high
• Width = 1320mm
• Height = 2114mm
• Frame section = 86 x 67mmSK2 open in
• Door size = 1210 x 2032mm high
• Width = 1320mm
• Height = 2125mm
• Frame section = 86 x 67mmSK2 open out
• Door size = 1210 x 2032mm high
• Width = 1320mm
• Height = 2112mm
• Frame section = 86 x 67mmSK2B open in
• Door size = 1210 x 2032mm high
• Width = 1320mm
• Height = 2502mm
• Frame section = 86 x 67mmSK2B open out
• Door size = 1210 x 2032mm high
• Width = 1320mm
• Height = 2492mm
• Frame section = 86 x 67mmSKA2 no sill
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2098mm
• Frame section = 86 x 51mmSKA2 open in
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2109mm
• Frame section = 86 x 51mmSKA2 open out
• Door size = 1210 x 2032mm high
• Width = 1288mm
• Height = 2096mm
• Frame section = 86 x 51mm
