Fire Barrier Wired Matress (Fire-teK WM910)
Fire Barrier is a flexible and robust mineral wool mattress faced on one side with galvanised wire mesh which is stitched to the mattress with wire and rated Euroclass A1 non-combustible for reaction to fire. Fire Barrier is available either unfaced or foil faced on one side between the wire mesh and the mineral wool.
• Offers both fire and acoustic performance
• Satisfies the UK Building Regulations criteria for half hour cavity barrier
• Non-combustible with melting point in excess of 1000°C
• A double layer can achieve one hour fire protection • Foil facing option available for use above clean rooms
• Ideal for compartmentation purposes of voids and cavitiesDuct Roll (Thermo-teK RL Pro Alu)

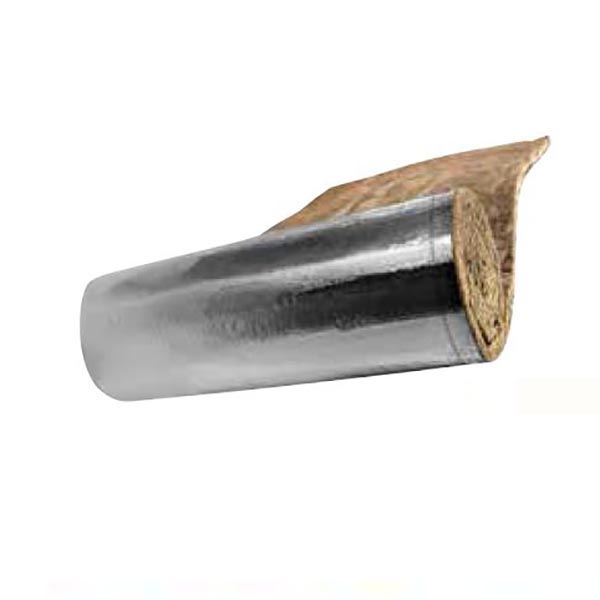

Duct Roll is a strong, flexible roll of non-combustible, mineral wool with a reinforced aluminium foil facing on one side. It offers total flexibility to aid installation around square, rectangular and circular duct work with maximum service temperatures of 230°C.
• Excellent thermal, acoustic and fire performance
• Easy to handle and install
• Foil facing provides a bright, washable surface and a high level of water vapour resistanceDuct Slab (Thermo-teK BD 060 Alu)
Duct Slab is manufactured from non-combustible, mineral wool to provide a robust slab with high thermal efficiency. Supplied with a reinforced aluminium foil facing to one side the product is recommended specifically for the thermal insulation of square and rectangular HVAC ductwork and equipment at maximum service temperature of 250°C and is rated Euroclass A1 non-combustible for reaction to fire.
• Klima Duct Slab offers similar benefits to Klima Duct Roll
• It is often specified on larger projects for square or rectangular HVAC duct work which is why it`s in our project range
• Higher density, rigid, easy to handle and cut
• Offer 250°C maximum service temperature, that is 20°C more than Duct RollFire Duct Slab (Fire-teK BD 917)
Fire Duct Slab (also known as PyroDuct Slab) is a mineral wool Slab fully tested and certified to provide up to two hours fire protection to HVAC steel ductwork. It can be used in horizontal ducts, vertical ducts, ducts passing through compartment walls and floors and kitchen extracts. Fire Duct Slabs are suitable for applications above clean rooms, within air plenums or for aesthetic purposes. Fire Duct Slab is rated Euroclass A1 non-combustible reaction to fire.
• PyroDuct Slab is fully tested and certified to provide up to 2 hours fire protection to HVAC steel ductwork
• It can be installed on horizontal and vertical HVAC steel duct work passing through fire compartment walls and floors
• It is suitable for applications above clean rooms, within air plenums, for aesthetic purposes and kitchen extracts
• The aluminium facing acts as a vapour control layer and Fire Duct is corrosion free
