cabinet and flap systems

• Kinvaro T-65 to T-75



  KINVARO T-65 to T-75 FLAP FITTING:
  • Variable opening angle - holds flap securely at any angle between 45° and 110°
  • Adjustable spring force
  • Intergrated adjustable closing damper
  • Weight 0.7 to 11kg
  • Range of flaps:
  - Width: up to 1200mm
  - Height: 250 - 600mm

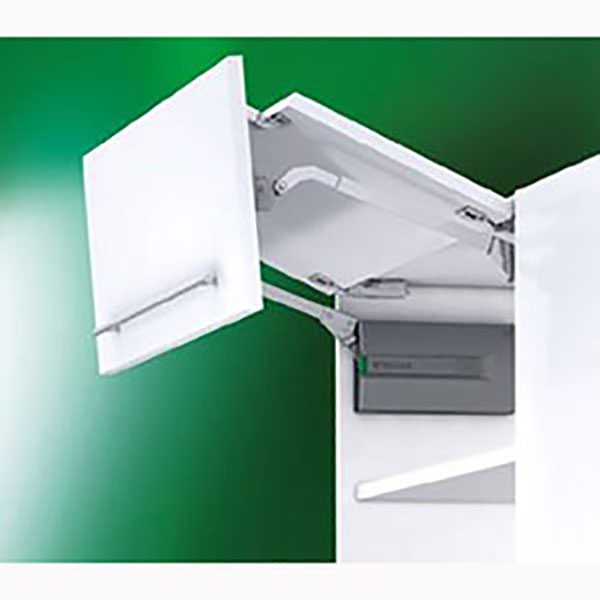

• Kinvaro F-20



  KINVARO F-20 FLAP FITTING:
  (folding door)
  • Extremely smooth movement
  • Suitable for handle-free kitchens
  • Intergrated adjustable closing damper
  • Holds flap securely in any position
  • Flap with 3 dimensional adjustment
  • Weight 3.8 to 19.2kg
  • Range of flaps:
  - Width: 400 - 1200mm
  - Height: 520 - 900mm

• Kinvaro S-35



  KINVARO S-35 FLAP FITTING:
  (swing over cabinet door)
  • Securely holds flap in any position from 45° opening angle
  • Extremely smooth movement
  • Adjustable spring force
  • Intergrated adjustable closing damper
  • Flap 3-dimensional adjustment
  • Allows the use of cornices, pelmets and atatched lights
  • Weight 1.5 to 17.5kg
  • Range of flap:
  - Width: 450 - 1200mm
  - Height: 420 - 750mm

• Kinvaro L-80



  KINVARO L-80 PARALLEL FLAP LIFT FITTING:
  (parallel lift)
  • Extremely smooth movement
  • Suitable for handle-free kitchens
  • Intergrated adjustable closing damper
  • Hold flap securely in any position
  • Flap with 3 dimensional adjustment
  • Opens parallel to the cabinet
  • Suitable for equipment cabinets as well as cabinets with cornices, pelmets and attached lights
  • Weight 1.9 to 14.6kg
  • Range of flaps:
  - Width: 450 - 1200mm
  - Height: 350 - 600mm

• T-Slim Flap



  T-SLIM FLAP FITTNG:
  • Inset flush fit on carcass side
  • Or surface mounted on carcass side (adapter needed)
  • Milling depth carcass side 12.2 mm
  • Milling depth door 13.7 mm
  • 3D adjustment
  • All cover caps paintable
  • Available in soft close or auto opening (Tipmatic)
  • Available for wooden doors only in SA

• Kinvaro D-S



  KINVARO D-S FLAP DOWN FITTING:
  (flap stay)
  • Damped opening
  • Flap height 200mm up to 480mm
  • Minimum cabinet depth 82mm

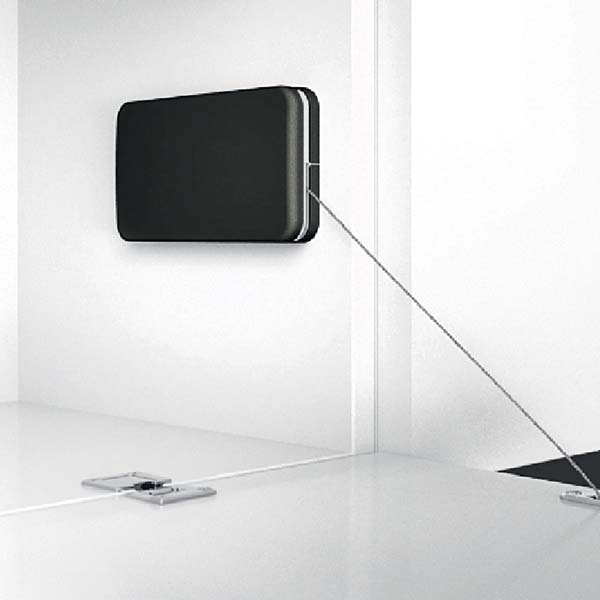

• Kinvaro D-M



  KINVARO D-M FLAP DOWN FITTING:
  (flap stay)
  • Damped opening
  • Flap height 200mm up to 480mm
  • Flap weight up to 10kg
  • Spring force adjustment
  Note: to be used with Tiomos flap hinges
