hinge system
CLIP top BLUMOTION CRISTALLO hinge 110°

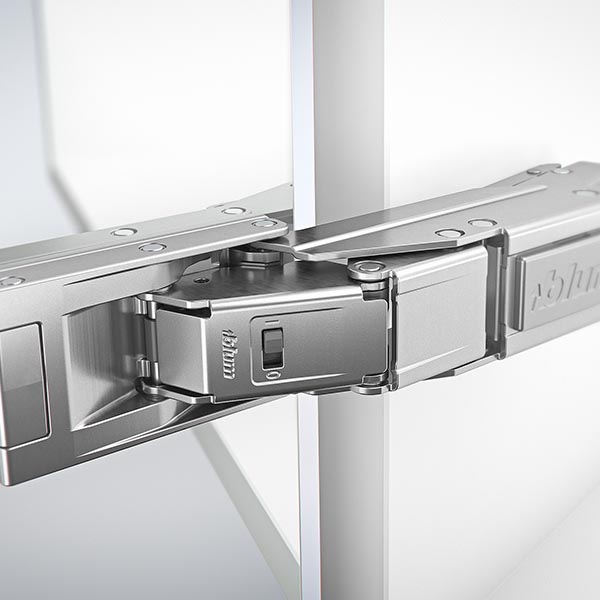

Blum CLIP top BLUMOTION CRISTALLO hinge 110°. Hinge for glass and mirror doors. Hinge without door protrusion enables the implementation of furniture with inner pull-outs or pull-out surrounds. 110° opening angle. Integrated soft closing in the hinge arm; can be deactivated. Tool-free fast assembly and removal of the door on the cabinet using clip-on assembly method. Fast tool-free mounting of the hinge on the boss plate using CLIP mechanism. Third location pin in hinge arm for stable hold of the hinge on the mounting plate.
• Adhesion plate is glued on to the front, without glass drilling
• Integrated BLUMOTION for soft and effortless closing action
• Hinge without door protrusion for overlay application (for cabinets with inner pull-outs or pull-out surrounds)
• Deactivation option for BLUMOTION dampening for small, lightweight doors
• Harmonious gap layout thanks to convenient and infinitely variable 3-dimensional adjustment
• Tool-free fast assembly and removal of the door via tried and trusted CLIP mechanism
• Fast tool-free mounting of the hinge on the boss plate using CLIP mechanismCLIP top BLUMOTION hinge 110°

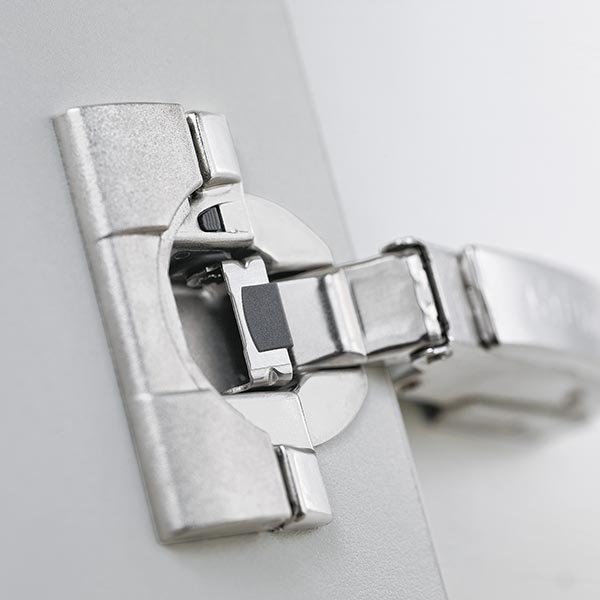

Blum CLIP top BLUMOTION hinge 110°. Hinge for standard applications. 110° opening angle. Closing dampening integrated in the hinge boss; this can be deactivated. Tool-free fast assembly and removal of the door from the cabinet using clip-on assembly method. Third location pin in hinge arm for stable hold of the hinge on the mounting plate.
• Elegant design with small overall dimensions thanks to integrated dampening in the hinge boss
• Integrated BLUMOTION for soft and effortless closing action
• Deactivation option for BLUMOTION dampening for small, lightweight doors
• Harmonious gap layout thanks to convenient and infinitely variable 3-dimensional adjustment
• Various applications possible thanks to different hinge arms and boss fixingsCLIP top hinge for thin doors 110°

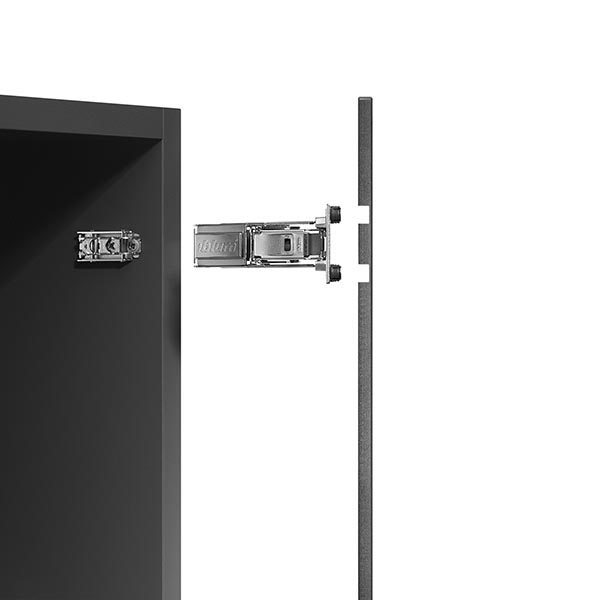

Blum CLIP top hinge for thin doors 110°. Hinge for thin doors from 8 to 14 mm. Hinge without door protrusion enables the implementation of furniture with inner pull-outs or pull-out surrounds. 110° opening angle. Tool-free fast assembly and removal of the door on the cabinet using clip-on assembly method. Third location pin in hinge arm for stable hold of the hinge on the mounting plate.
• EXPANDO T fixing system for a variety of front materials
• Front thicknesses from 8 mm to 14 mm
• Hinge without door protrusion for overlay application (for cabinets with inner pull-outs or pull-out surrounds)
• Harmonious gap layout thanks to convenient and infinitely variable 3-dimensional adjustment
• Tool-free fast assembly and removal of the door via tried and trusted CLIP mechanism
• Optional BLUMOTION dampening for silent and effortless closing action
• Can be combined with TIP-ON mechanical opening support systemCLIP top wide angle hinge 155° for cabinets with inner pull-outs

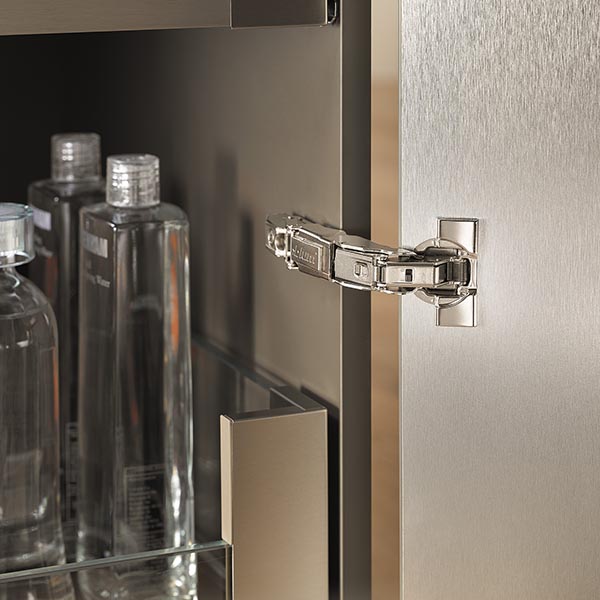

Blum CLIP top hinge 155°. Hinge without door protrusion enables the implementation of furniture with inner pull-outs or pull-out surrounds. Also suitable for special applications (e.g. mitre/notched). 155° opening angle. Tool-free fast assembly and removal of the door on the cabinet using clip-on assembly method. Third location pin in hinge arm for stable hold of the hinge on the mounting plate.
• Hinge without door protrusion for overlay application (for cabinets with inner pull-outs or pull-out surrounds)
• Suitable for special applications, e.g. mitre or notched doors
• Harmonious gap layout thanks to convenient and infinitely variable 3-dimensional adjustment
• Tool-free fast assembly and removal of the door via tried and trusted CLIP mechanism
• Optional BLUMOTION dampening for silent and effortless closing action
• Can be combined with TIP-ON mechanical opening support systemCLIP top wide angle hinge 170°

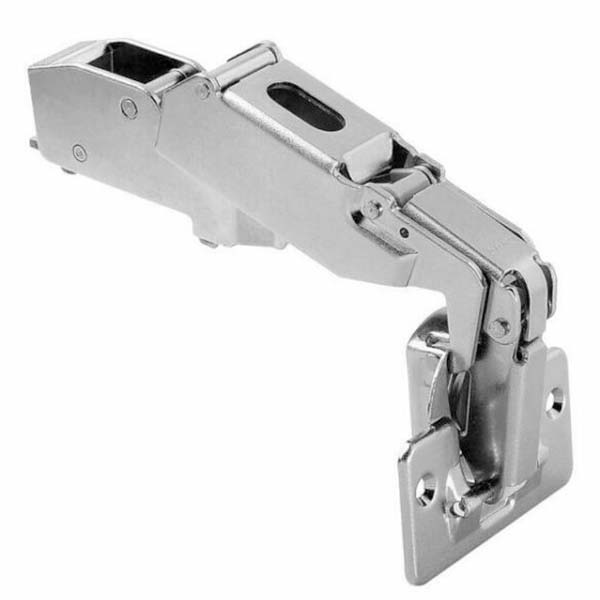

Blum CLIP top hinge 170°. Hinge for wide angle applications. 170° opening angle. Tool-free fast assembly and removal of the door on the cabinet using clip-on assembly method. Third location pin in hinge arm for stable hold of the hinge on the mounting plate.
• Harmonious gap layout thanks to convenient and infinitely variable 3-dimensional adjustment
• Tool-free fast assembly and removal of the door via tried and trusted CLIP mechanism
• Optional BLUMOTION dampening for silent and effortless closing action
• Can be combined with TIP-ON mechanical opening support system
• Various applications possible thanks to different hinge arms and boss fixingsMODUL hinge

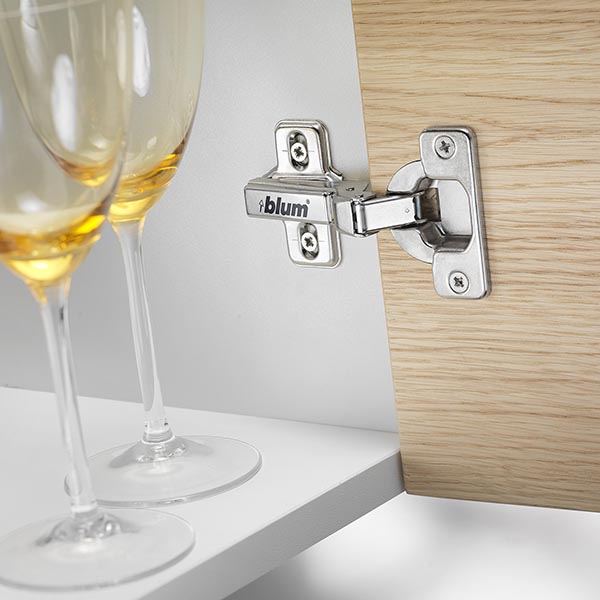

Blum MODUL refrigerator facade door hinge 95°. Hinge for refrigerator doors connected with a sliding mechanism. Front thicknesses of up to 30 mm are possible. 95° opening angle. Door to cabinet assembly and removal with slide-on technology. Assembly on cruciform mounting plate for refrigerator facade door hinge.
• Front thicknesses of up to 30 mm are possible
• Harmonious gap layout due to 3-dimensional front adjustment, which is easily accessible when attached to the refrigerator
• Assembly and removal of front possible when refrigerator is installed
• Elegant design with shallow construction height
• Slide on hinge arm
• Integrated pull-out stop
motion technology system

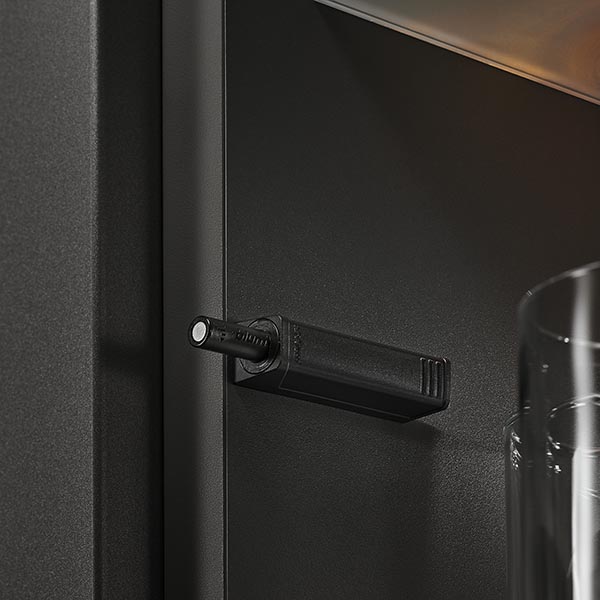

TIP-ON handle-less door opening system
Mechanical opening support system for handle-less doors in combination with hinges.
• User friendly and high quality opening mechanism
• Enables easy opening and secure closing
• Drilling assembly or assembly with adapter plate
• Long and short adapter plates for a discreet appearance

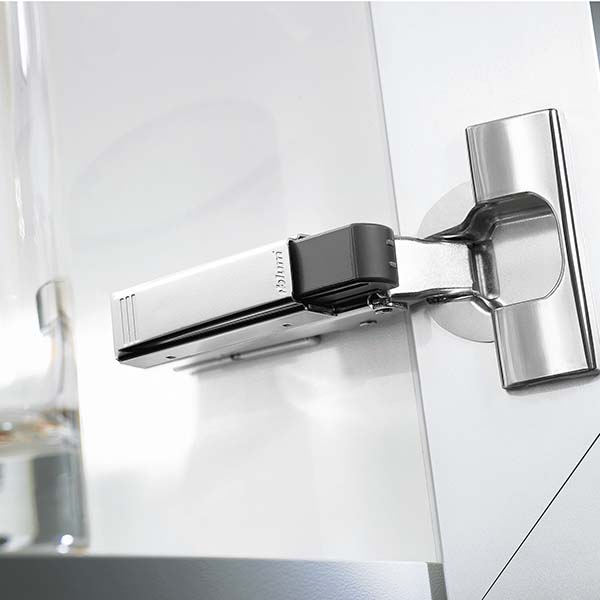

• Harmonious integration into the cabinet interior with different colour variantsCLIP top BLUMOTION add-on
Optional BLUMOTION dampening for silent and effortless closing action
