Drains
- RO 125 NW 50

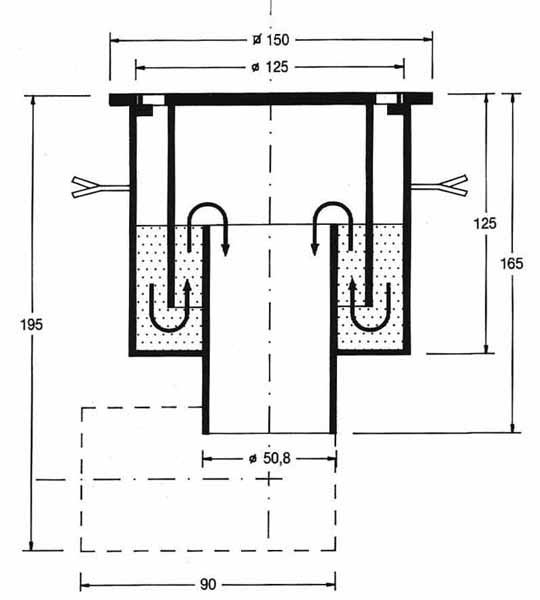

  RO 125 NW 50 :
  Vertical dimensions:
  Round (Overall size: 150mm diameter x 165mm deep)
  Square (Overall size: 150mm x 165mm deep)
  Horizontal dimensions:
  Round (Overall size: 150mm diameter x 195mm deep)
  Square (Overall size: 150mm x 195mm deep)
  Features:
  • Flow Rate: 0,8 litres/sec
  • Load capacity: 400 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • Public toilets
  • Kitchenettes (in office blocks)
  • Laundries etc.
- RO 125 NW50 Funnel type
  RO 125 NW 50 FUNNEL TYPE :
  Vertical sizes:
  Round (Overall size: 150mm diameter x 165mm deep)
  Square (Overall size: 150mm x 165mm deep)
  Horizontal sizes:
  Round (Overall size: 150mm diameter x 195mm deep)
  Square (Overall size: 150mm x 195mm deep)

  Features:
  • Flow Rate: 0,8 litres/sec
  • Load capacity: 400 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • Public toilets
  • Kitchenettes (in office blocks)
  • Laundries
  • Wherever there is a need to discharge liquid directly into the drain above the floor level.
  - RO125 Funnel Type Datasheet
  - RO125 NW 50 CAD Drawing
- RO 200 NW 100

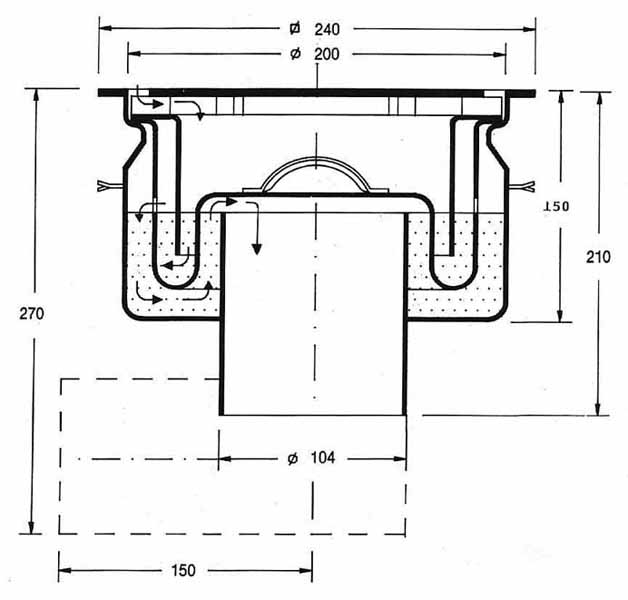

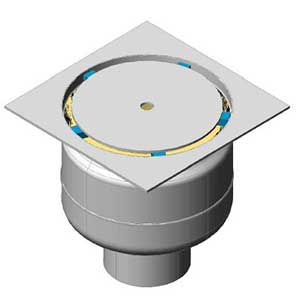

  RO 200 NW 100 :
  Vertical sizes:
  Round (Overall size: 240mm diameter x 220mm deep)
  Square (Overall size: 240mm x 220mm deep)
  Horizontal sizes:
  Round (Overall size: 240mm diameter x 270mm deep)
  Square (Overall size: 240mm x 270mm deep)
  Features:
  • A large sludge box which retains all the coarse slurry;
  • Easy to dismantle for cleaning
  • The discharge pipe is fully accessible once the drain has been dismantled;
  • Flow Rate: 3 litres/sec
  • Load capacity: 1000 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • Restaurants
  • Steakhouses
  • Kitchens
  • Dining Halls
  • Horse Stables
  • Pigsties
  • Nursing homes, etc.
- RO 200 NW100 Heavy duty

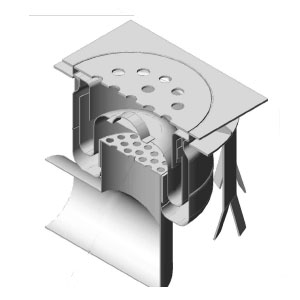

  RO 200 NW 100 HEAVY DUTY :
  Vertical sizes:
  Round (Overall size: 240mm diameter x 220mm deep)
  Square (Overall size: 240mm x 220mm deep)
  Horizontal sizes:
  Round (Overall size: 240mm diameter x 270mm deep)
  Square (Overall size: 240mm x 270mm deep)
  Features:
  • Flow Rate: 3 litres/sec
  • Load capacity: 2500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General food processing industries
  - RO200 Heavy Duty Datasheet
  - RO200H NW 100 CAD Drawing
- RO 200 NW100 Heavy duty with grating
  RO 200 NW 100 HEAVY DUTY WITH GRATING :
  Vertical = Square (Overall size: 320mm x 255mm deep)
  Horizontal = Square (Overall size: 320mm x 310mm deep)
  Features:
  • Flow Rate: 3 litres/sec
  • Load capacity: 2500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General food processing industries
  - RO200 With Grating Datasheet
  - RO200 NW Heavy Duty with Grating CAD Drawing
- RO 200S NW 100
  RO 200S NW 100 :
  Vertical sizes:
  Round (Overall size: 240mm diameter x 320mm deep)
  Square (Overall size: 240mm x 320mm deep)
  Horizontal sizes:
  Round (Overall size: 240mm diameter x 385mm deep)
  Square (Overall size: 240mm x 385mm deep)
  Features:
  • A large sludge box which retains all the coarse slurry;
  • Easy to dismantle for cleaning;
  • The discharge pipe is fully accessible once the drain has been dismantled
  • With 1,2,3 and 4 side inlets
  • Flow Rate: 3 litres/sec
  • Load capacity: 1000 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • Restaurants
  • Steakhouses
  • Kitchens
  • Dining Halls
  • Horse Stables
  • Pigsties
  • Nursing homes, etc.
  and wherever there is a need to connect sinks directly to the floor trap under the ground.

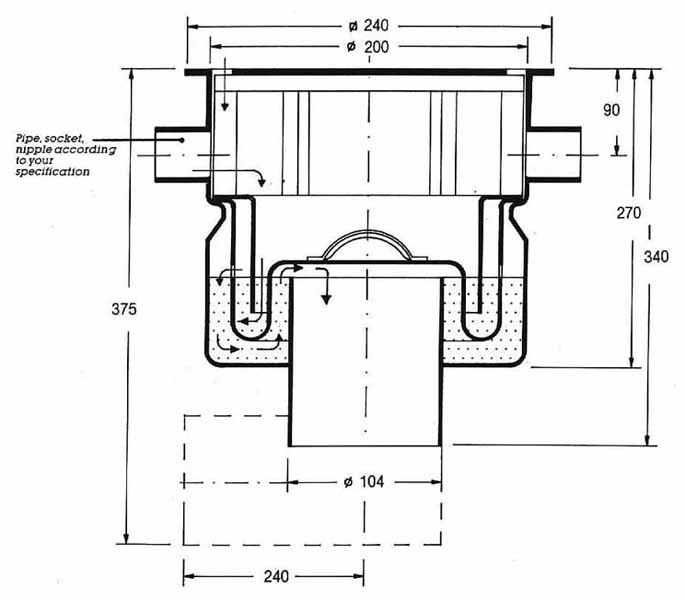

  - RO 200 NW 100 Line Diagram
  - RO200 SH Datasheet
- RO 280 NW 100

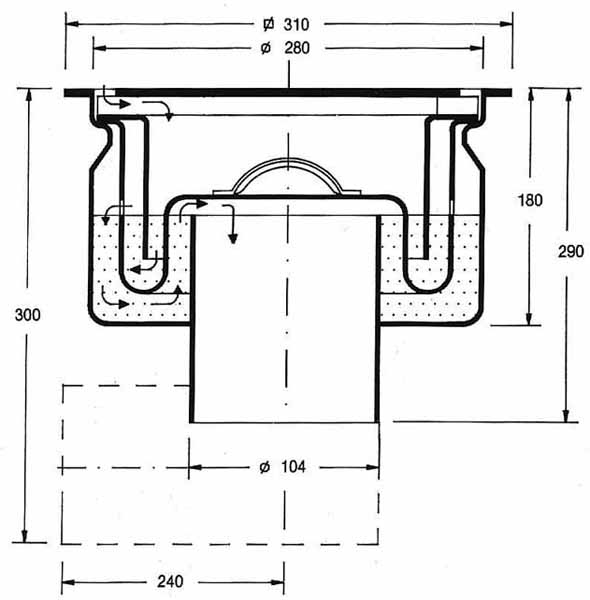

  RO 280 NW 100 :
  Vertical sizes:
  Round (Overall size: 310mm diameter x 230mm deep)
  Square (Overall size: 310mm x 230mm deep)
  Horizontall sizes:
  Round (Overall size: 310mm diameter x 300mm deep)
  Square (Overall size: 310mm x 300mm deep)
  Features:
  • A large sludge box which retains all the coarse slurry;
  • Easy to dismantle for cleaning;
  • The discharge pipe is fully accessible once the drain has been dismantled;
  • Flow Rate: 4,5 litres/sec
  • Load capacity: 1,500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General Food Processing
  • Wine
  • Beverage
  • Dairy
  • Packaging industries, etc.
- RO 280 NW 100 Heavy duty

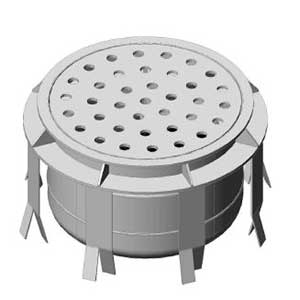

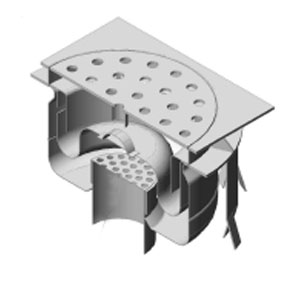

  RO 280 NW 100 HEAVY DUTY :
  Vertical sizes:
  Round (Overall size: 310mm diameter x 230mm deep)
  Square (Overall size: 310mm x 230mm deep)
  Horizontal sizes:
  Round (Overall size: 310mm diameter x 300mm deep)
  Square (Overall size: 310mm x 300mm deep)
  Features:
  • Flow Rate: 4.5 litres/sec
  • Load capacity: 2500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General food processing industries
  - RO280 Heavy Duty Datasheet
  - RO280 nw CAD Drawing
- RO 280 NW 100 Heavy duty with grating
  RO 280 NW 100 HEAVY DUTY WITH GRATING :
  Vertical = Square (Overall size: 390mm x 270mm deep)
  Horizontal = Square (Overall size: 390mm x 335mm deep)
  Features:
  • Flow Rate: 4.5 litres/sec
  • Load capacity: 2500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General food processing industries
  - RO280 Heavy Duty with Grating Datasheet
  - RO280 Heavy Duty with Grating CAD Drawing
- RO 280 NW 100 refuse area
  RO 280 NW 100 FOR REFUSE AREA :
  Vertical = 500 x 380mm deep
  Horizontal = 500 x 450mm deep
  Features:
  • Flow Rate: 4.5 litres/sec
  • Load capacity: 2500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General food processing industries
  - RO280 Refuse area Datasheet
  - RO280 Refuse Area CAD Drawing
- RO 280S NW 100

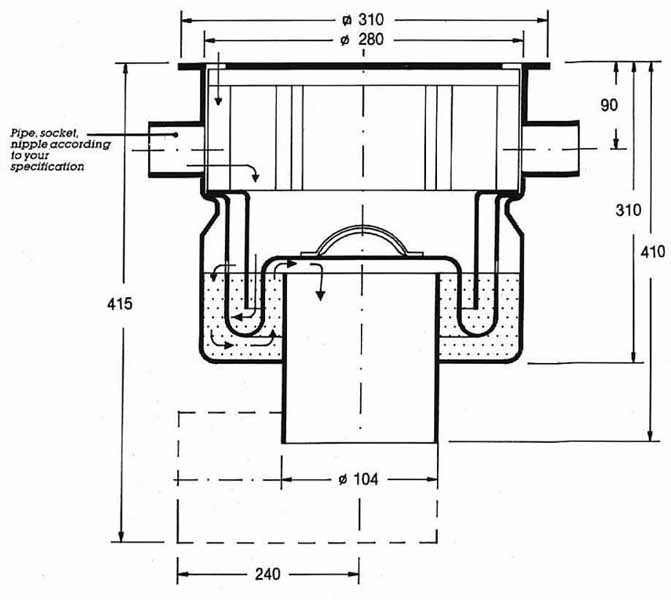

  RO 280S NW 100 :
  Vertical sizes:
  Round (Overall size: 310mm diameter x 360mm deep)
  Square (Overall size: 310mm x 360mm deep)
  Horizontal sizes:
  Round (Overall size: 310mm diameter x 420mm deep)
  Square (Overall size: 310mm x 420mm deep)
  Features:
  • A large sludge box which retains all the coarse slurry
  • Easy to dismantle for cleaning
  • The discharge pipe is fully accessible once the drain has been dismantled
  • With 1,2,3 and 4 side inlets
  • Flow Rate: 4,5 litres/sec
  • Load capacity: 1,500 kg
  • Material: Stainless Steel 304
  • Position of outlet:
  - V = Vertical
  - H = Horizontal with mitred bend
  Typical uses:
  • General Food Processing
  • Wine
  • Beverage
  • Dairy
  • Packaging industries, etc.
  and wherever there is a need to connect sinks directly to the floor trap under the ground.
