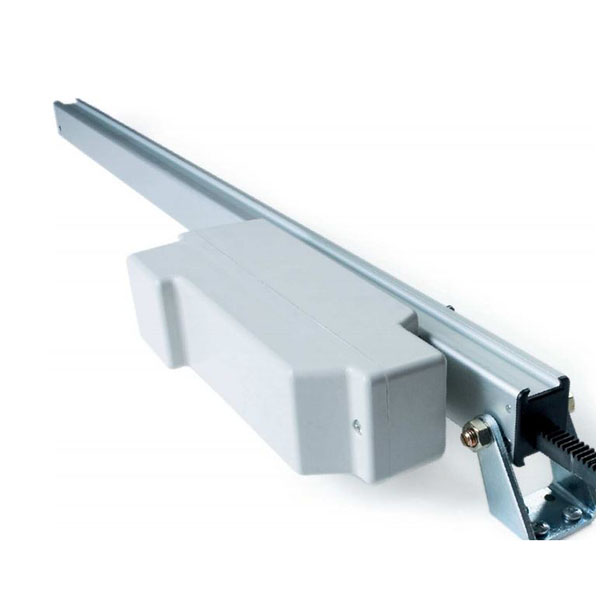

• Rack 230V AC



  Rack 230V AC :
  • Voltage Supply = 230 Vac ± 10%
  • Electric Connection Operation = 3 wires + earth
  • Force in Push Action = 650 N
  • Speed = 8 mm/s
  • Current Absorption (with mass load) = 0.1 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Signal Limit Stop Position = NA
  • Time Rating = 50%
  • Protection Class = IP 55
  • Stroke (mm) = 180, 350, 550, 750 and 1000

• Rack 24V DC



  Rack 24V DC :
  • Voltage Supply = 24V dc ± 10%
  • Electric Connection Operation = 2 wires
  • Force in Push Action = 750 N
  • Speed = 8 mm/s
  • Current Absorption (with mass load) = 1 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Signal Limit Stop Position = Open/close
  • Time Rating = 50%
  • Protection Class = IP 55
  • Stroke (mm) = 180, 350, 550, 750 and 1000

• QUASAR Chain 230V AC



  QUASAR Chain 230V AC :
  • Voltage Supply = 100Vac - 240Vac
  • Electric Connection Operation = 3 wires + earth
  • Force in Push Action = 300 N
  • Speed = 15 mm/s
  • Current Absorption (with mass load) = 0,4 A - 0,2 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Protection Class = IP 40
  • Stroke (mm) = 500mm

• QUASAR Chain 24V DC



  QUASAR Chain 24V DC :
  • Voltage Supply = 24V dc ± 10%
  • Electric Connection Operation = 2 wires
  • Force in Push Action = 300 N
  • Speed = 15 mm/s
  • Current Absorption (with mass load) = 0,9 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Protection Class = IP 40
  • Stroke (mm) = 500mm

• QUASAR Chain 24V DC F-Signal



  QUASAR Chain 24V DC F-Signal :
  • Voltage Supply = 24V dc ± 10%
  • Electric Connection Operation = 5 wires
  • Force in Push Action = 300 N
  • Speed = 15 mm/s
  • Current Absorption (with mass load) = 0,9 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Protection Class = IP 40
  • Stroke (mm) = 500mm

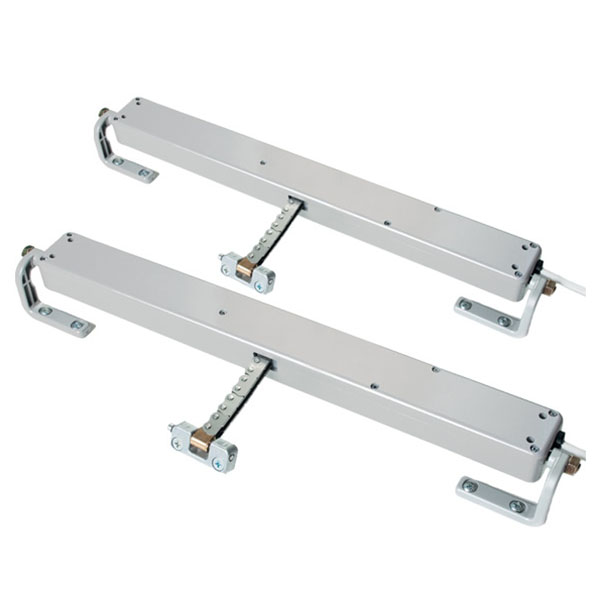

• SYNCHRO QUASAR Chain 230V AC



  SYNCHRO QUASAR Chain 230V AC :
  • Voltage Supply = 100Vac - 240Vac
  • Electric Connection Operation = 3 wires + earth + 5 wires
  • Force in Push Action = 300 N
  • Speed = 15 mm/s
  • Current Absorption (with mass load) = 0,4 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Protection Class = IP 40
  • Stroke (mm) = 500mm

• SYNCHRO QUASAR Chain 24V DC



  SYNCHRO QUASAR Chain 24V DC :
  • Voltage Supply = 24V dc ± 10%
  • Electric Connection Operation = 5 wires
  • Force in Push Action = 300 N
  • Speed = 15 mm/s
  • Current Absorption (with mass load) = 0,9 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Protection Class = IP 40
  • Stroke (mm) = 500mm

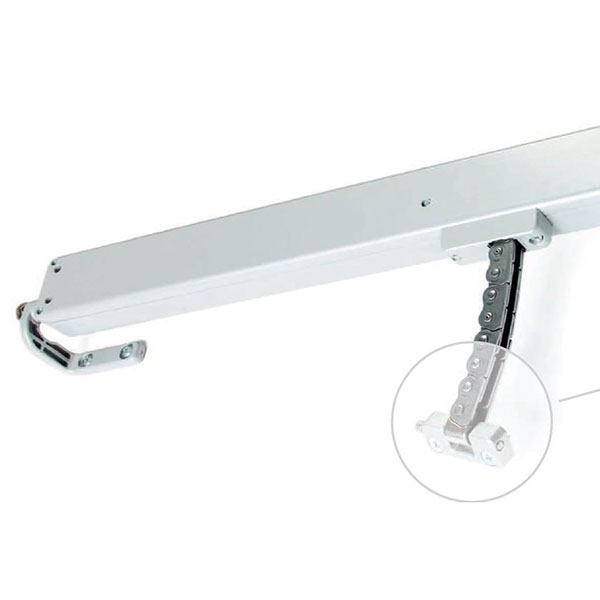

• SYNCHRO QUASAR Chain 24V DC F-Signal



  SYNCHRO QUASAR Chain 24V DC F-Signal :
  • Voltage Supply = 24V dc ± 10%
  • Electric Connection Operation = 5 wires + 3 wires
  • Force in Push Action = 300 N
  • Speed = 15 mm/s
  • Current Absorption (with mass load) = 0,9 A
  • Parallel Connection = Yes
  • Limit Stop = Electronic
  • Safety Stop = Electronic
  • Protection Class = IP 40
  • Stroke (mm) = 500mm
